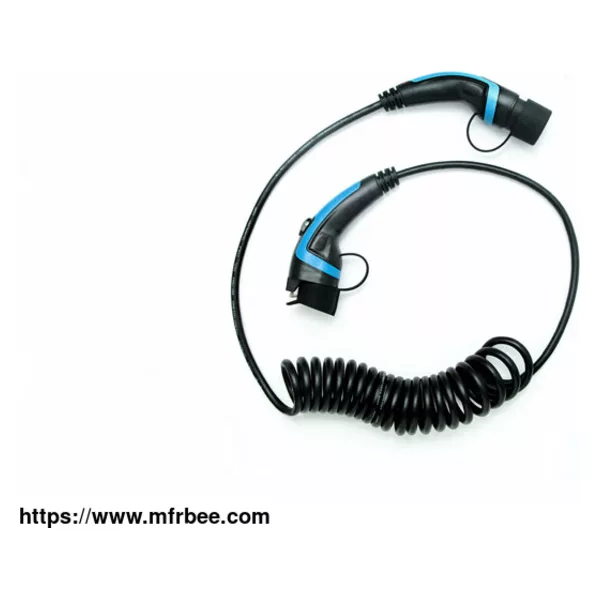

Type2-Type1 EV Charging Cable
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Roll,Carton
- Delivery
- 15 Days
Specifications
Type2-Type1 EV Charging Cable
The cable conforms to IEC & SAE Standard (EU & USA) of EV Charging, suits Electric Vehicles manufactured in European Countries and America. The Type 1 end (with sheath) connect to the EV while The Type 2 end connects to the Charging Station. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.
Features of Jayuan Type2-Type1EV CarChargingCable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP65 for Plug.
Specifications ofType 2 toType 1ChargingCable
| Electrical | Environment | Materials | Mechanical | ||||
| Insulation Resistance: | >1000MΩ (DC500V) | Operating Temperature: | -30℃~50℃ | Shell (Thermoplastic): | UL94-VO | Life: | no-load plug>10000times |
| Flame Retardent | |||||||
| Pins Temperature Rise: | <50K | Waterproof IP Grade: | IP66/IP55 | Pin: | Copper Alloy, Silver Plated | External Force: | 1meters Drop and 2tons vehicle run over pressure affordable. |
| Withstand Voltage: | 2500V | / | / | / | / | Insertion Force: | <100N |
| Contact Impedance: | 0.5mΩMax | / | / | / | / | / | / |
As one ofelectric vehicle charger manufacturers
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2018.2.24
- Address:（406 Building1) No.10 Xinxiqiao Village, Jincheng Town, Linan, Hangzhou, Zhejiang, China
- Contact:Tony Zhao
