AOC (ACTIVE OPTICAL CABLE)

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

AOC is a cabling technology that accepts the same electrical inputs as a direct attach cable, but uses optical fiber "between the connectors". AOC uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces. As a leading AOC factory, T&S AOC cable assemblies are designed in to meet needs for high-density cabling interconnect systems like data centers, and high-performance computing application.

T&S Communication Active Optical Cables (AOCs) achieve high data rates over long reaches, using a fraction of the power of other brands while providing streamlined installation for high-performance computing and storage applications. As a professional active optical cable assembly factory in China, T&S offers a wide range of active optical cables, such as 100G QSFP28 AOC,10G SFP+ AOC, 25G SPF28 AOC(or 25G AOC), etc, with different specifications at good prices. Feel free to contact us at any time!

400G QSFP-DD AOC

The TSQS-852HG-XXXC is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector.

200G QSFP56 AOC

The TSQS-852HG-XXXC is a Four-Channels, Pluggable, Parallel, Fiber-Optic QSFP56 for 200 Gigabit Ethernet Applications, Infiniband HDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 200Gbps bandwidth.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

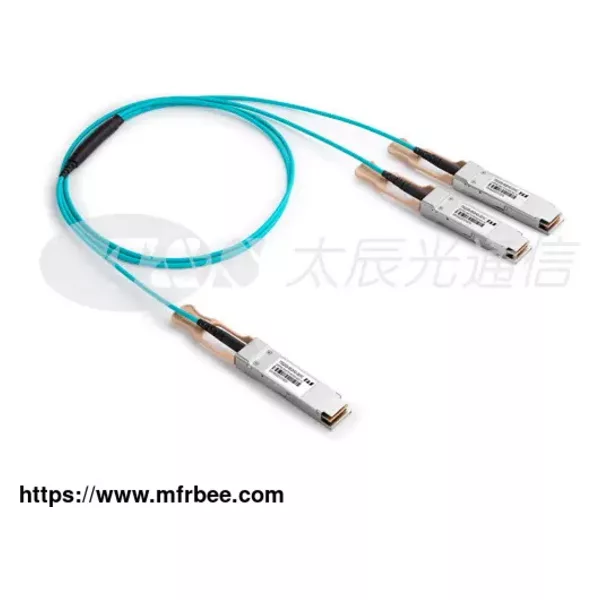

200G QSFP56 BREAKOUT AOC

The TSQSS-852HG-XXXC is a Four-Channels, Pluggable, Parallel, Fiber-Optic QSFP56 for 200 Gigabit Ethernet Applications, Infiniband HDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 200Gbps bandwidth.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

As a supplier of fiber optic products, T&S today takes a leading role in OEM and ODM services for fiber-optic communication products and fiber optic connectivity solutions. Based on T&S’ excellent and comprehensive capabilities, we are committed to providing optical communication products with superior performance for next-generation communications in a green, pragmatic, and cost-effective manner.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa,Americas
Founded Year:
Address:8 Jinxiu Middle Road, Pingshan, Shenzhen, Guangdong, China
Contact:T&S .com
