SFP 1.25G 1310nm 40Km LC Transceiver

FOB Price
USD $5.00 / Piece
Place Of Origin
china
Minimum Order
2
Packaging
N/A
Delivery
7 Days

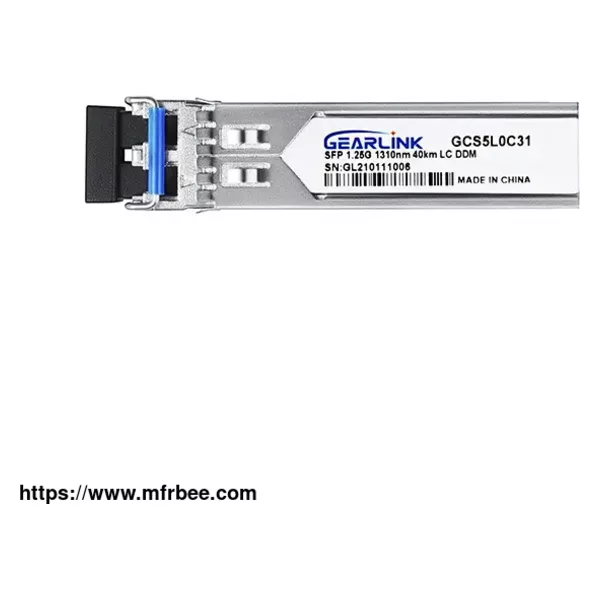

GearLink’s gigabit optical fiber transceiver GCS5L0C31 is used in Gigabit Ethernet, dual-channel, and bidirectional transmission synchronous optical network (SONET). The China optical transceiver conforms to SFP multi-source protocol and SFF-8472, with digital diagnostic monitoring(DDM) function. The package of GCS5L0C31 is SFP with LC interface, the rate is 1.25G, the optical wavelength is 1310NM, and the maximum transmission distance is 40KM.
Get Free Quote 
Compatibility of SFP 1310nm 40Km LC Transceiver
Cisco
Juniper
Brocade
Arista
Dell
Extreme
Mellanox
HP
HUAWEI
Intel
GLC-EX-SMD 1000BASE-EX-SFP 1310nm 40km
GLC-EX-SM 1000BASE-EX-SFP 1310nm 40km

Technical Specification Of SFP 1.25G 1310nm 40Km LC Transceiver

Absolute Maximum Ratings
Parameter Symbol Unit Min Max
Storage Temperature Range Ts oC -40 +85
Relative Humidity RH % 5 95
Power Supply Voltage Vcc V -0.5 +4

Recommended Operating Conditions
Parameter Symbol Unit Min Typ Max
Case Operating Temperature Range Tc oC -10 70
Power Supply Voltage Vcc V 3.135 3.3 3.465
Data rate Gb/s - 1.25/1.0625 -

Now the ge sfp lc connector sx transceiver price is reasonable, anything you need, please contact us.

As one of optical transceiver suppliers, we will do our best to meet all the needs of customers.
