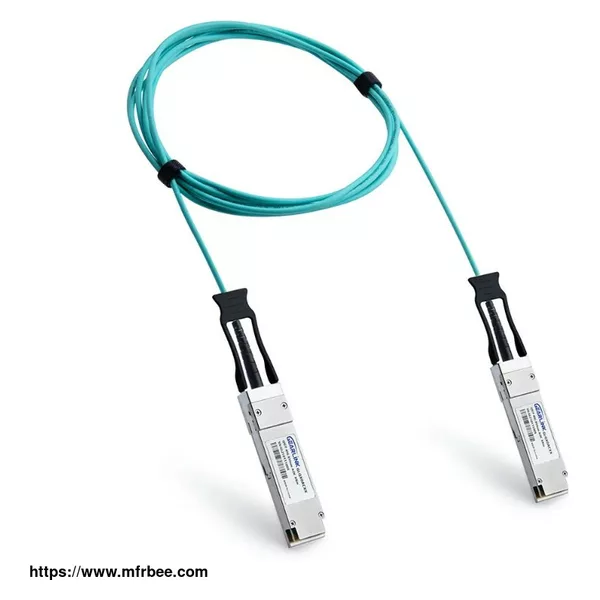

QSFP+ 40G 850nm XXm AOC

FOB Price: USD $5.00 / Piece
Place Of Origin: china

Minimum Order: 2

Packaging: N/A

Delivery: 7 Days

The Gearlink’s QSFP+ active optic cables are high performance, low power consumption, long reach interconnect solution supporting InfiniBand DR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe, and SAS. 40g aoc is compliant with the QSFP+ MSA and IEEE P802.3ba. GearLink’s QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.3Gb/s, providing an aggregated rate of 41.2Gb/s. GearLink’s QSFP+ AOC is one kind of parallel transceiver that provides increased port density and total system cost savings.

Compatibility of QSFP+ 40G 850nm XXm AOC

Cisco

Juniper

Brocade

Arista

Dell

Extreme

Mellanox

Intel

QSFP-H40G-AOC2M 2M 40G QSFP+ AOC

QSFP-H40G-AOC1M 1M 40G QSFP+ AOC

QSFP-H40G-AOC50M 50M 40G QSFP+ AOC

QSFP-H40G-AOC30M 30M 40G QSFP+ AOC

QSFP-H40G-AOC25M 25M 40G QSFP+ AOC

QSFP-H40G-AOC20M 20M 40G QSFP+ AOC

QSFP-H40G-AOC10M 10M 40G QSFP+ AOC

QSFP-H40G-AOC7M 7M 40G QSFP+ AOC

Technical Specification Of QSFP+ 40G 850nm XXm AOC Fibre Transceiver

Absolute Maximum Ratings

Parameter Symbol Min. Typical Max. Unit Notes

Supply Voltage Vcc3 -0.5 - +3.6 V

Storage Temperature Ts -10 - +85 °C

Operating Humidity RH +5 - +85 % 1

Note:

1. No condensation

Recommended Operating Conditions

Parameter Symbol Min. Typical Max Unit Notes

Operating Case Temperature TC 0 - +70 °C

Power Supply Voltage Vcc 3.14 3.3 3.47 V

Power Dissipation Pd - - 1.5 W 1

Bit Rate BR 1.25 10.3125 - Gbps

Note:

1. Per terminal

As a reliable optical transceiver manufacturer, we will do our best to meet all the needs of customers.
