Dormitory Container

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

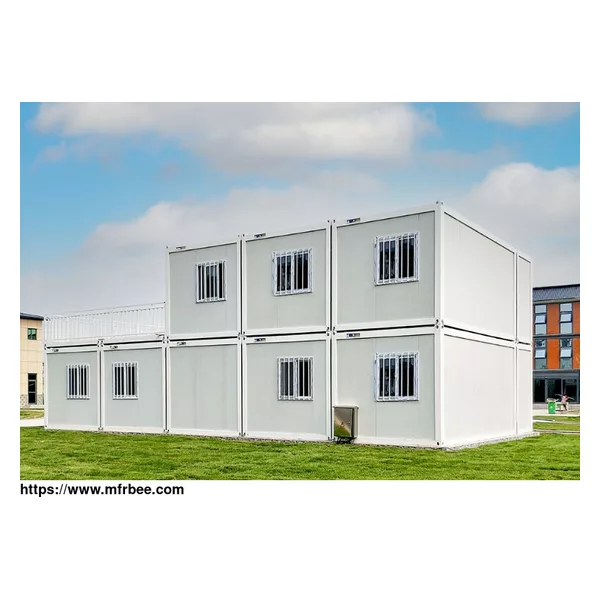

Container Van Dormitory Design.

Accommodation container dorms are the most widely used container houses field. During the implementation of modern engineering projects, as the best product that can quickly and efficiently solve the temporary accommodation needs of the camp, the container van dormitory far exceeds the functions of tents in terms of comfort and support facilities. The dormitory container has been widely used in road and bridge, communication, mining, oil and gas exploration, construction and other industries.

We are a one-stop service provider that can provide all-around accommodation, bath, office, dining hall, warehouse, special communication, power equipment container house products, and fully meet the products and services for your camp construction needs. We have 10 product patents and have passed ISO9001, ISO14001, ISO45001 certification. Our team members have more than 10 years of experience in the field of mobile home management, production and container dormitory design. We have our own mobile home research center, which is capable of solving all the difficulties and problem in camp construction for you.

Product Parameters of Dormitory Container

Specification

Size 5950mm(L)*2250mm (W)*2690 mm(H)(external size) 5700mm(L)*2020mm(W)*2390mm(H)(internal size)Or 6050mm(L)*2438mm (W)*2590 mm(H)(external size) 5875mm(L)*2255mm(W)*2325mm(H)(internal size)

Foundation Simple concrete foundation or solid floor slab required

Base Profile steel; Plywood/fiber cement panels+ vinyl/PVC surface flooring.

Steel frame Frame structure: cold formed profile steel, 4mm thickness; Corrosion Protection: Polishing, derusting, sand blasting; Finishing coat: alkyd honed painting； Connected by bolts or screws.

Wall and roof boards Sandwich panels, GI sheet, decoration panels, panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.

Roof Sandwich panels, GI sheet, asphalt shingle. Panels thickness will be 50mm, 75mm, or 100mm PU, EPS, Rockwool or others.

Outside doors Steel security doors or aluminium doors; The dimensions of doors are 800 X 1950 mm.

Interior doors Wood, aluminum or sandwich panels doors.

Windows Main material is PVC double glass sliding, aluminium, gypsum windows and etc;The window dimensions are 900/1100mm and they may vary upon request.

Exterior decoration PVC ex-hanging panels, metal carved boards or MDF decorative boards and etc.

Electricity The electrical installation is hidden, laid in plaster depth. The cables are HES brand, for the fuses Siemens automates are used. For the sockets cables of 2 X 2.5, lighting 2 X 1.5 are used. The switches and sockets are VIKO brand. In each room, there is one switch and two sockets. Split air conditioning installation will be made at the container.

Sanitary The installations are made plaster depth. Clean water piping are FIRAT brand. The tea furnace is chrome steel kitchen sink. Wash basins and lavatory bowls are DOGVIT brand.

Technical parameters

Standard roof load 0.5KN/m2(can reinforce the structure as required)

wind speed Wind speed designing 210km/h (Chinese standard)

seismic resistance magnitudes 8

Temperature suitable temperature.-50°C~+50°C

Fireproof Grade 3

component long beam 3mm galvanized steel material

Weight 1950kgs

short beam 2.5mm galvanized steel sheet

column on the corner 3mm galvanized steel raw material

secondary beam Z-shaped galvanized steel

Floor panel 18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm vinyl flooring

Forklift Two forklift on the base to move from one site to another

External power If possible, we will add one or two external power holes on the roof panel.

Advantages of Container Student Housing

Durability: The container house adopts a structural steel frame house system, and the modular steel frame is made of anti-corrosion high-strength cold-rolled galvanized sheet, which can effectively avoid the influence of corrosion of the steel plate during construction and use. It has strong earthquake resistance, deformation resistance, and service life. 20+ years.

Thermal insulation: The thermal insulation material used has good thermal insulation effect.

Sound insulation: The composite wallboard installed in the house has a good sound insulation effect, and the sound insulation is more than 40 decibels.

Health: dry construction to reduce environmental pollution caused by waste, 100% of the steel structure materials of the house can be recycled, and most of the other supporting materials can also be recycled, which is in line with the current environmental awareness; all materials are green building materials to meet the ecological environment. requirements, good for health.

Convenience: Easy disassembly and assembly, easy to transport, especially suitable for units that frequently change construction sites;

Sealing: The strict manufacturing process makes this kind of movable room have good water tightness;
