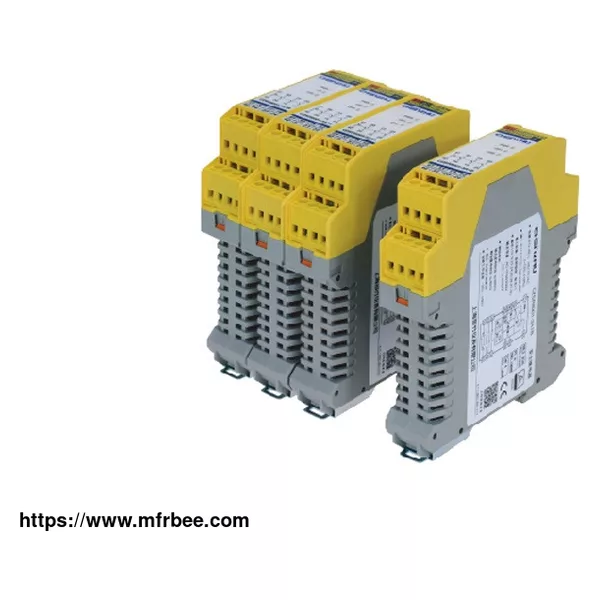

Safety Mat Safety Relay

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Safety Mat Relay

Safety relay modules provide a high level of fail-safe operation for critical processes and protection. This safety mat and multi-function controllers safety relay offer 2 or 4-wire safety mats/edges. Automatic reset and monitored manual reset are available.

The programmable safety relays support 3 safety output contacts (N/O) and 1 auxiliary output contacts (N/C) or 2NO+1NC+1SO or 2NO(t)+1NC(t).

Features & Advantages of Chenzhu Safety Mat Safety Relay

2-wire safety mats/edge

4-wire safety mats/edge

Automatic reset

Monitored manual reset

Parameter of Safety Mat Safety Relay

CZSR8301-3A1B CZSR8301-3A1B(M) CZSR8302-3A1B CZSR8303-3A1B

Supply voltage 24V DC/AC 24V DC/AC 24V DC/AC 100V~230V AC

Voltage tolerance 0.85~1.1 0.85~1.1 0.85~1.1 -

Current consumption ≤90mA (24V DC) / ≤240mA (24V AC) ≤90mA (24V DC) / ≤240mA (24V AC) ≤90mA (24V DC) / ≤240mA (24V AC) ≤7 VA (220V AC)

Input current ≤50mA (24V DC) ≤50mA (24V DC) ≤10mA (24V DC) ≤10mA (220V AC)

Cable resistance ≤15Ω ≤15Ω ≤15Ω ≤15Ω

Input devices Safety mats (4-wire) Safety mats (4-wire) Safety mats (4-wire) Safety mats, safety edges (2 or 4-wire)

Number of contacts 3NO+1NC 3NO+1NC 3NO+1NC 1.0KΩ ~ 10KΩ

Contact material AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au

External contact fuse protection 10A gL/gG NEOZED (NO);

6A gL/gG NEOZED (NC) 10A gL/gG NEOZED (NO);

6A gL/gG NEOZED (NC)

Mechanical endurance of contacts ≥107 ≥107 ≥107 ≥107

Utilisation category In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V

Switch-on delay ≤300ms ≤150ms ≤300ms ≤300ms

Delay-on de-energisation ≤30ms ≤30ms ≤30ms ≤30ms

Recovery time ≤300ms ≤300ms ≤100ms ≤500ms

Supply short interruption 20ms 20ms 20ms 20ms

EMC EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4

Vibration Vibration frequency: 10Hz~55Hz;

Vibration amplitude: 0.35mm Vibration frequency: 10Hz~55Hz;

Vibration amplitude: 0.35mm

Ambient temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃ -20℃~+60℃

Storage temperature -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃

Relative humidity 10%~90% 10%~90% 10%~90% 10%~90%

Elevation ≤2000m ≤2000m ≤2000m ≤2000m

Overvoltage category Ⅲ Ⅲ Ⅲ Ⅲ

Pollution degree 2 2 2 2

Rated insulation voltage 250V AC 250V AC 250V AC 250V AC

Rated impulse voltage 6000V (1.2/50us) 6000V (1.2/50us) 6000V (1.2/50us) 6000V (1.2/50us)

Dielectric strength 1500V AC, 1min 1500V AC, 1min 1500V AC, 1min 1500V AC, 1min

Clearance and creepage distance In accordance with EN 60947-1 In accordance with EN 60947-1 In accordance with EN 60947-1 In accordance with EN 60947-1

Safety integrity level SIL3 SIL3 SIL3 SIL3

Performance level PLe PLe PLe PLe

Category Cat.4 Cat.4 Cat.4 Cat.4

CZSR8302-2A1B1S CZSR8302-2AT1BT1S

Supply voltage 24V DC/AC 24V DC/AC

Voltage tolerance 0.85~1.1 0.85~1.1

Current consumption ≤120mA (24V DC), ≤300mA (24V AC) ≤120mA (24V DC), ≤300mA (24V AC)

Input current ≤10mA (24V DC) ≤10mA (24V DC)

Cable resistance ≤15Ω ≤15Ω

Input devices Safety mats, safety edges (2 or 4-wire) Safety switches, Contact switches

Terminal resistance 1.0KΩ ~ 10KΩ 1.0KΩ ~ 10KΩ

Number of contacts 2NO+1NC+1SO 2NO(t)+1NC(t)

Contact material AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au

External contact fuse protection 10A gL/gG NEOZED (NO);

6A gL/gG NEOZED (NC) 10A gL/gG NEOZED (NO);

6A gL/gG NEOZED (NC)

Mechanical endurance of contacts ≥107 ≥107

Utilisation category In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V

Semiconductor output data Number of semi-output：1SO

Driving ability：20mA/24V DC Number of semi-output：1SO

Driving ability：20mA/24V DC

Switch-on delay ≤300ms ≤300ms

Delay-on de-energisation ≤30ms(instantaneous) ≤30ms (instantaneous)

0s, 0.5s, 1s, 2s, 3s, 5s(Deleted factory set as 5s)

Recovery time ≤100ms ≤100ms

Supply short interruption 20ms 20ms

EMC EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4

Vibration Vibration frequency: 10Hz～55Hz;

Vibration amplitude: 0.35mm Vibration frequency: 10Hz～55Hz;

Vibration amplitude: 0.35mm

Ambient temperature -20℃~+60℃ -20℃~+60℃

Storage temperature -40℃~+85℃ -40℃~+85℃

Relative humidity 10%~90% 10%~90%

Elevation ≤2000m ≤2000m

Overvoltage category Ⅲ Ⅲ

Pollution degree 2 2

Rated insulation voltage 250V AC 250V AC

Rated impulse voltage 6000V (1.2/50us) 6000V (1.2/50us)

Dielectric strength 1500V AC, 1min 1500V AC, 1min

Clearance and creepage distance In accordance with EN 60947-1 In accordance with EN 60947-1

Safety integrity level SIL3 SIL3

Performance level PLe PLe

Category Cat.4 Cat.4
