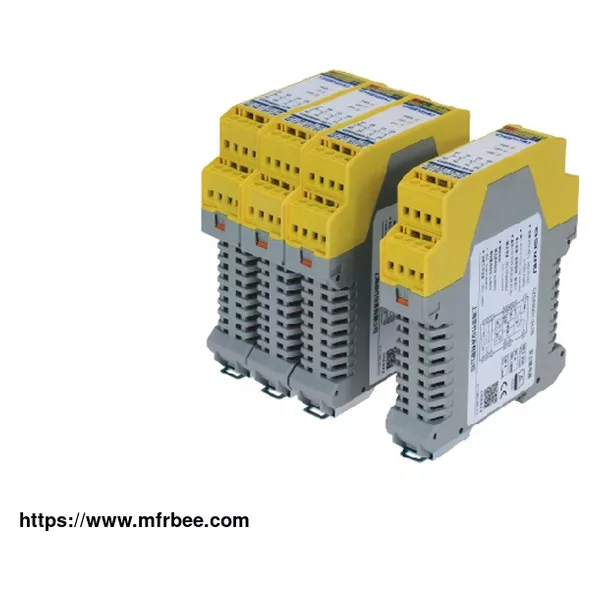

Light Curtain Safety Relay

Light curtain Safety Relay supports PNP-type light beam devices. Safety relay modules provide a high level of fail-safe operation for critical processes and protection. These light curtains and multifunction controllers provide multiple functions such as release delay, muting, stepping, and protection for multiple curtains.

Safety rated relays can choose single or dual channel operation, manual or automatic reset, with function of short circuit monitoring between channels.

Features & Advantages of Light Curtain Safety Relay

Support PNP type light beam device

Support dual channel

Support manual or automatic reset

Parameter of Light Curtain Safety Relay

CZSR8001-3A1B-P CZSR8101-3A1B-N

Supply voltage 24V DC 24V DC

Voltage tolerance 0.85~1.1 0.85~1.1

Current consumption ≤90mA (24V DC) ≤90mA (24V DC)

Input current ≤50mA (24V DC) ≤50mA (24V DC)

Cable resistance ≤15Ω ≤15Ω

Input devices PNP type light beam devices NPN type light beam devices

Number of contacts 3NO+1NC 3NO+1NC

Contact material AgSnO2 + 0.2 µm Au AgSnO2+ 0.2 µm Au

External contact fuse protection 10A gL/gG NEOZED (NO) ;

6A gL/gG NEOZED (NC) 10A gL/gG NEOZED (NO);

6A gL/gG NEOZED (NC)

Mechanical endurance of contacts ≥107 ≥107

Utilization category In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V In accordance with EN60947-5-1:

AC-15, 5A/230V; DC-13, 5A/24V

Switch-on delay ≤300ms ≤300ms

Delay-on de-energisation ≤30ms ≤30ms

Recovery time ≤100ms ≤100ms

Supply short interruption 20ms 20ms

EMC EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4

Vibration Vibration frequency: 10Hz~55Hz;

Vibration amplitude: 0.35mm Vibration frequency: 10Hz~55Hz;

Vibration amplitude: 0.35mm

Ambient temperature -20℃~+60℃ -20℃~+60℃

Storage temperature -40℃~+85℃ -40℃~+85℃

Relative humidity 10%~90% 10%~90%

Elevation ≤2000m ≤2000m

Overvoltage category Ⅲ Ⅲ

Pollution degree 2 2

Rated insulation voltage 250V AC 250V AC

Rated impulse voltage 6000V (1.2/50us) 6000V (1.2/50us)

Dielectric strength 1500V AC, 1min 1500V AC, 1min

Clearance and creepage distance In accordance with EN 60947-1 In accordance with EN 60947-1

Safety integrity level SIL3 SIL3

Performance level PLe PLe

Category Cat.4 Cat.4
