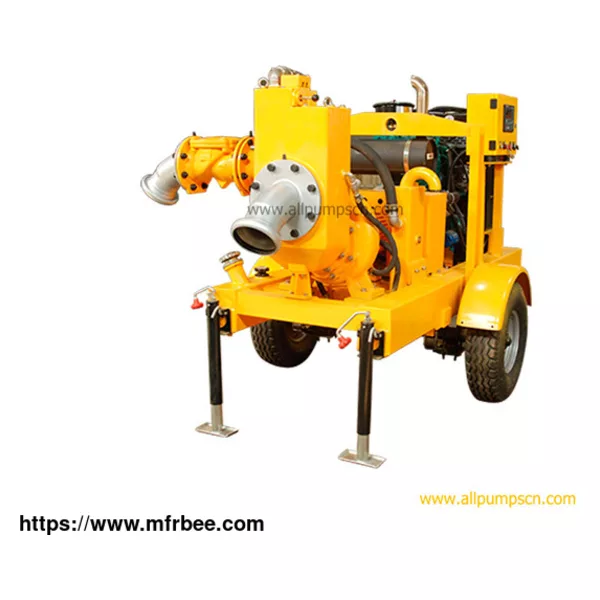

VACUUM PRIME ASSIST PUMPS

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Designed for dual functions, it can maintain a constant vacuum in the well point system and transport sewage and mud. The start-up is completely automatic without adding water (dry start), and it can even run under dry conditions (dry run).

Dry start-up pumps can be used to pump any type of groundwater, including seawater, well point systems, or to pump septic tanks and sewage tanks, mud containing suspended solids, etc. For bulk selections of dry prime pumps direct from factory, inquiry now.

FEATURES OF vacuum prime pumps

1. Reduce operating costs and vacuum pump does not consume oil, there is no level control or recharge, or condensate is discharged every day;

2. Higher performance. Our vacuum assisted self priming pump system allows faster start-up and constant water flow from the well point system;

3. Optimize operation. Self priming centrifugal pump can ensure operation in case of vacuum pump failure. Because of treat large-diameter solids make the device suitable for well point systems and sewage pumps;

4. Easy to maintain. In the diesel engine version within reach when changing the oil, air and fuel filters and maintaining the starter motor and alternator.

SPECIFICATION OF VACUUM PRIME ASSIST PUMPS

Pump Connection Size 1"- 20" (25mm - 500mm)

Max. Pump Flowrate 3500m3/h (15411 GPM or 972L/S)

Max. Pump Head 100m (328 feet)

Speed Range 1450rpm to 2900rpm

Max. Temperature 264°F / 120°C

Max. Working Pressure 1.6MPa

Materials of Construction Cast Iron, Cast Steel, Ductile Iron, Stainless Steel 304/316, Bronze

As one of the most professional industrial pumps manufacturers, we provide submersible water pump for sewage, vacuum pump to prime water pump, china self priming trash pump, etc. For more information, please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:
Address:JINSHAN INDUSTRIAL ZONE, SHANGHAI 201507, CHINA
Contact:allpumpscn .com
