VACUUM PUMP FOR PRIMING CENTRIFUGAL PUMP

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

All Pumps Machinery's automatic oil filling pump is designed with a clear focus on reliability, efficiency and durability. The vacuum pump for priming centrifugal pump has a 100% mechanical starting system, which can be quickly started and restarted even under dry conditions. The heavy construction style of the vacuum prime pumps and the top cover makes the All Pumps Machinery vacuum priming system for centrifugal pumps series very suitable for use in the tight contractor market.

FEATURES OF VACUUM PUMP FOR PRIMING CENTRIFUGAL PUMP

1. Vacuum cleaner of more than 9m - even in the case of "snoring", the vertical suction can be completed in less than a minute;

2. Fast and automatic water absorption and re absorption (idling and re absorption);

3. Heavy duty internal pump bearing - extra long service life;

4. High grade bronze (as standard) or with

Stainless steel option;

5. Efficient open impeller design - large solids and abrasives

Treatment while maintaining high flow rate;

6. Large capacity air treatment enables more "well points" to operate;

7. Solid rubber wheel chassis and single lifting point are convenient for field handling;

8. Through the controlled floating air-water separation system, ensure the suction - extend the water absorption efficiency - quickly replace on site

Minutes (mechanical seal option);

9. Built in oil tank, longer running time (optional oil tank)

Available);

10. Automatic start control panel;

11. The oversized inspection hole cover is convenient for cleaning.

12. Strong dry running ability;

13. The air separation tank is easy to maintain and made of stainless steel

Optional;

14. Long running time and minimal service intervention.

Let the knowledgeable experts at industrial pumps manufacturers All Pumps Machinery guide you to find the vacuum pump for priming centrifugal pump with features that best suit your industry needs.

HOW TO PRIME CENTRIFUGAL PUMP ?

Priming a vacuum pump for priming centrifugal pump is essential for proper operation and performance, and vacuum pump for priming centrifugal pump is a highly effective way to do it. At All Pumps Machinery, we offer high-quality vacuum priming systems for centrifugal pumps, designed to provide efficient and reliable priming. Our vacuum prime pumps use a vacuum source to generate a negative pressure in the priming chamber, which helps to remove air and create a vacuum. Contact us today to learn more about our vacuum-assisted priming centrifugal pumps and how they can benefit your operations.

SPECIFICATION OF VACUUM PUMP FOR PRIMING CENTRIFUGAL PUMP

Pump Connection Size 1"- 20" (25mm - 500mm)

Max. Pump Flowrate 3500m3/h (15411 GPM or 972L/S)

Max. Pump Head 100m (328 feet)

Speed Range 1450rpm to 2900rpm

Max. Temperature 264°F / 120°C

Max. Working Pressure 1.6MPa

Materials of Construction Cast Iron, Cast Steel, Ductile Iron, Stainless Steel 304/316, Bronze

As one of the most professional industrial pumps manufacturers, we provide submersible water pump for sewage, vacuum priming system for centrifugal pumps, centrifugal pumps solids handling, etc. For more information, please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:
Address:JINSHAN INDUSTRIAL ZONE, SHANGHAI 201507, CHINA
Contact:allpumpscn .com

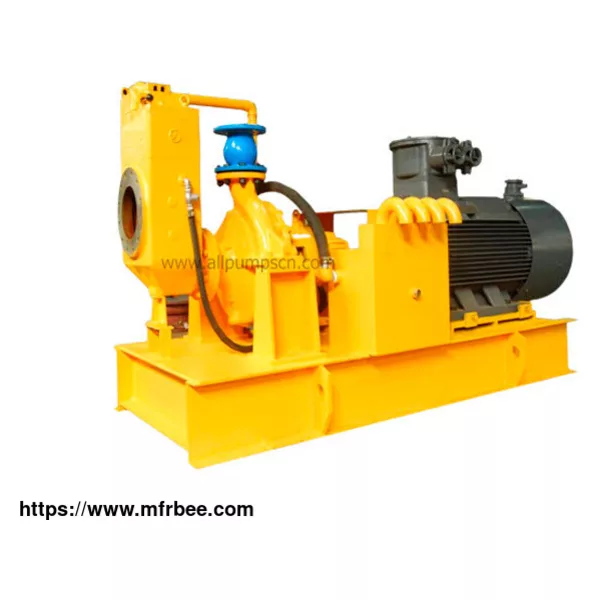

VACUUM PUMP FOR PRIMING CENTRIFUGAL PUMP
