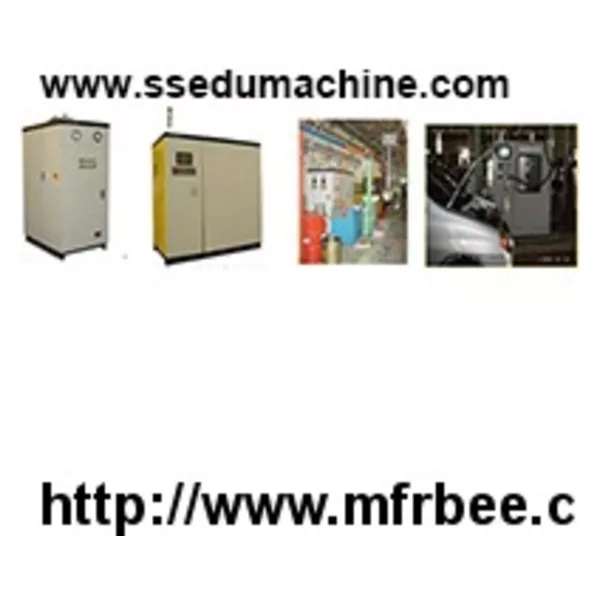

SS102 Vacuum filling machine Auto Production Line Equipment Production Equipment
Filling principles
Filling system usually use vacuum pump make seal container as high vacuum, then check
the gas tightness, then use filling pump to make high speed filling. When it get to a
certain pressure, stop filling, then make it to the level you need. Take the filling head,
and finish filling.
Technical parameter
1. Control mode: manual/auto
2. Oil volume: 50L,180 L(we supply customer order service)
3. Rehydration form: 55 gallon or oil depot(entrance pressure should below 15Bar)
4. Temperature range: 20-50 degree
5. Filling speed: 3-50L/min
6. Filling precision: 0.5-1%
7. Filling volume preset range: 0-999.9L(liquid level and volume double control)
8. Power supply: AC380V
9. Pressure supply: 4-7Bar
10. Vacuum degree: 1-20mbar
11. Filling pressure: 1-5Bar
12. Filling gun: auto pneumatic cylinder clamp/manual cylinder clamp
13. Appropriate liquid: cooling liquid, power steering fluid, operated clutch liquid, Brake fluid ,refrigerant etc.
Features
1. Statistical function: it can inquiry filling value and filling times in a period of time, it is easy to be statistics.
2. Filling pressure, vacuum degree, heat temperature and procedure parameter can be displayed in real time.
3. Alarm content is real, it can remove the fault correctly and precise.
4. The components are stable.
5. It can connect to internet, it uses RJ45 interface(optional)
6. Scan input: it can recognize 1 dimension code, 2 dimension code(optional)
7. It can move simultaneous with product line.
8. Filling gun uses alloy metal, and the surface has being polished.
