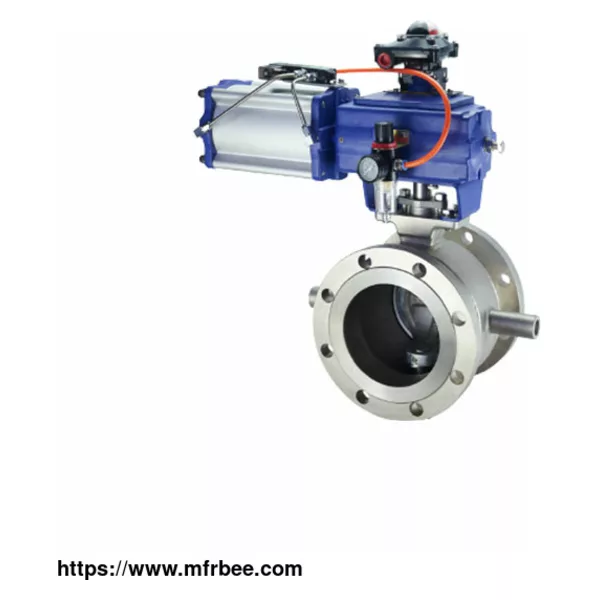

China Segmental Ball Valve

China Segmental Ball Valve

The adjustment performance of segmented ball control valve is the best among different types of ball valves, the flow characteristics are equal percentages, and the adjustable ratio is up to 100:1. The fisher segmented ball valve has a shearing effect between the V-shaped incision and the metal valve seat, which is especially suitable for media containing fibers, small solid particles, slurry and other media. For more more fisher segmented ball valve specifications request, please contact with Utmost control valve manufacturers china.

Segmental Ball Valve Technical Specification

Size: 1/2\"~16\"

Pressure: Class ANSI #150~300, PN10~PN64

Ball segment valves body material: Carbon steel, Stainless steel, or others

Standard compliance: B16.34, DIN3202 or equivalents

End connections: Flanged Ends

Direct mounting with pneumatic or electric actuators

Full port or regular bore; double block and bleed

Segmental Ball Valve Datas

If you are looking for a reliable china valve factory, please choose us, and we will be your best partner.
