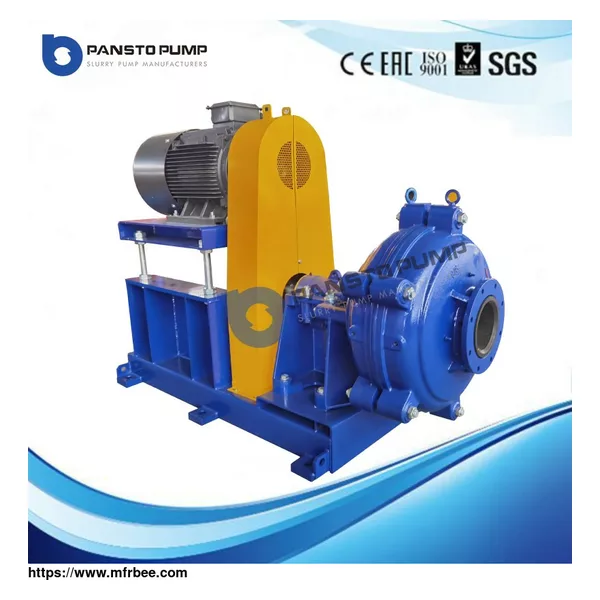

Abrasion Resistant Rubber-Lined Slurry Pump for Sand Pulp
Product Quick Detail
- Minimum Order
- 1
- Packaging
- Wooden box
- Delivery
- 15 Days
Specifications
PH(J) Series Slurry Pump
Application: PH(J) series of slurry pumps are cantilever centrifugal slurry pumps, which are suitable for transporting particles with small particle size (diameter less than 1mm), no sharp corners and high-concentration slurry. They can also transport corrosive slurry. They can beapplied in seriesconnection within the maximum allowable working pressure range of the pump. AH seriesare widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering and other departments.
Structure: PH(J) series slurry pump are cantilever, horizontal, axial suction centrifugal slurry pump. The position of the discharge port of the pump can be installed in eight different angles at intervals of 45 degree per customers’ requirement. The bearing assembly adopts the international leading cylindrical structure, which is convenient to adjust the gap between the impeller and the throat bush, and can be disassembled as a whole during maintenance, and is lubricated with special grease.
