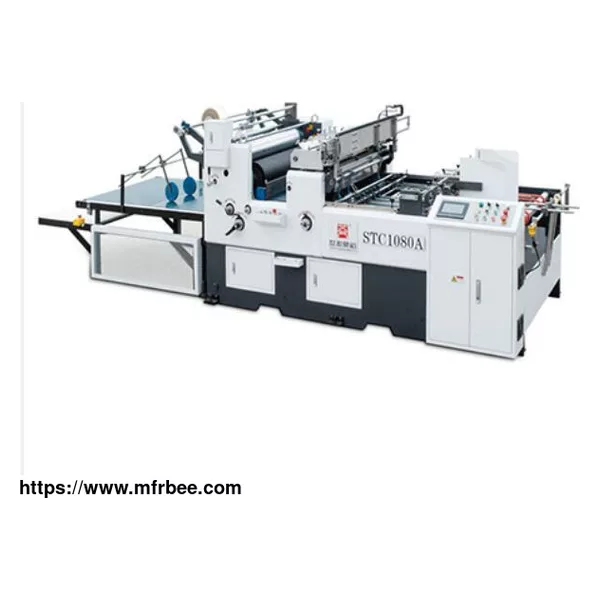

Automatic High-speed Window Patching Machine

The automatic High-speed Window Patching Machine is the special equipment for carton box colour box window lamination. They are advanced models in the domestic market.

Perfect personalization design philosophy ensures that theenvelope window pasting machine has the feature of high efficiency, high precision, high stability, and easy operation.

These envelope window pasting machines are available for both cardboard and corrugated paper.

This window patching machine adopts non-stop bottom feeder with side lay registration flexible version module of glue print stable and accurate diaphragm incision and cross-cutting cropped to achieve tissue boxes gift boxes, toy boxes, shirt boxes, milk cartons and other window film lamination.

Features of Automatic High-speed Window Patching Machine

Rotation Telescopic Rubber Roller

1. Single rubber roller cooperates with baffle to glueing. avoid the waste of glue, and reduce the volatilization.

2. Rotation telescopic rubber roller is a perfect personalization design, when the machine stopped, the rubber roller can rotate driving by the motor.

3. Avoid the glue solidification on the face of the rubber roller when cleaning the rubber roller, this part can pull out entirely and reduce cleaning time.

4. Our company has won the national patent for this part.

Automatic Gluing

1. Use automatic glueing instead of hand movement when the photoelectric sensor reacted to the paper.

2. If papers passing, the machine will use the air cylinder to control the platform to uplift. If there are no papers pass, the platform will decline to avoid the glue smear on the belt.

Adjustable Glue Roller

1. This part can adjust the glue roller right and left, up and down.

2. Using phase institutions, makes glueing more accurate.

3. The adjustment is faster and more convenient.

Foreign Matter Alarm

1. The two suction belts are wide and thick, increasing their service life.

2. With the device of adjusting the wind power, it can adjust wind power according to the sizes of papers, and ensure that no position is offset.

3. When foreign matter fell out of touch on the baffle plate, the main motor stop running and Alam.

4. Our company has won the national patent for this part.

Film Transport

1. Film Transport is controlled by the servo motor.

2. With high precision, make the error of cutting the film is less than 0.5mm.

3. Adopting the touch screen to adjust the length of the film, instead of the rotary knob, and make the adjustment manner more convenient and efficient.

Roller Cross Knife

1. Quality alloy steel was adopted in special heat treatment process manufacturing, to ensure long working hours.

2. It is instead of the old formula shears cut.

3. Use a servo motor to adjust the length of the film. so that the machine can runs more accurate, stable, and reliable.

4. Adopt a unique cutting angle to cut the thick film more easily.

Jog Film Cutting (special For Tissue Boxes)

1. Special design for the middle cutting of the film, such as tissue boxes, point cut, and long cut.

2. Incision length is adjustable, ensure accuracy and never shifting.

Reverse Function

Gain the reserve function: when installing machines and stopping machines in fixed time, it makes the operation more easily.
