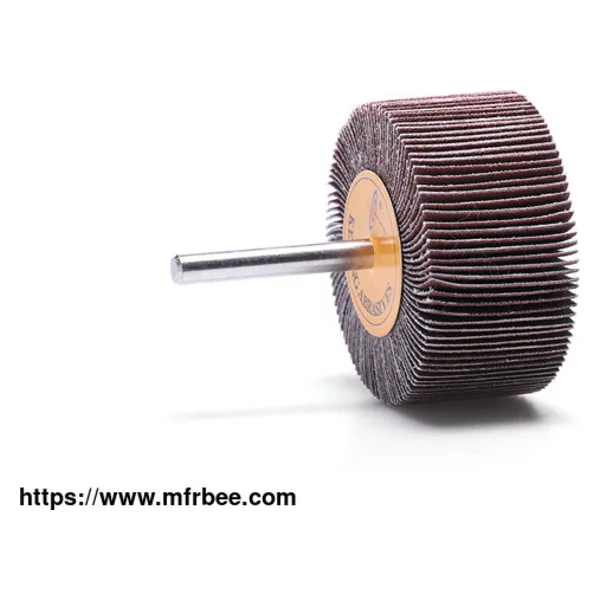

Flap Wheel 2 Inch

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

On the mounted abrasive flap wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.

Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

2 Inch Flap Wheel Specification:

Diameter: 2 inch=50mm

Max. RPM: 18000~20000 RPM

Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

Grit Size: 40#~1200#

Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

Flap Wheel 2 Inch Materials that can be Worked:

Aluminum

Cobalt-based alloys

Other non-ferrous metals

High-temperature-resistant materials

Nickel-based alloys (e. g. Inconel and Hastelloy)

Bronze

Hard non-ferrous metal

Titanium

Copper

Soft non-ferrous metal

Brass

Stainless steel (INOX)

Grey/nodular cast iron (GG/GJL, GGG/GJS)

Annealed cast iron

Steel, cast steel

Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.

Advantages：

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.

Flap Wheel 2 Inch Applications

Leveling

Deburring

Surface work

Weld dressing

Structuring (matt finishing, brush matting, and satin finishing)

Fine grinding in multiple steps

Flap Wheel 2 Inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel 2 Inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Flap Wheel 2 Inch Applicable Industries

Safety Warning of Flap Wheel 2 Inch

Instructions:


Please try to choose an operation indoor environment and wear protective guards and goggles.

Never exceed the recommended maximum permitted rotational speed for safety reasons.

In order to have a good stock removal rate, quality of surface, and thermal laoding on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
