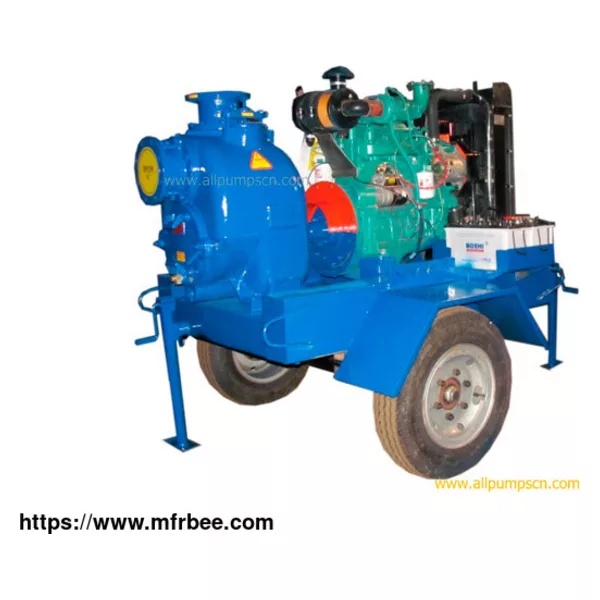

ENGINE DRIVEN TRASH & SLURRY PUMPS

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Heavy-duty Solids-handling(centrifugal trash pump), self-priming centrifugal, medium head, engine driven water pumps with design restart automatically in a fully open system and maintenance features. Bulk buy from All Pump Machinery,one of the top self priming centrifugal pump manufacturers.
FEATURES OF ENGINE DRIVEN TRASH & SLURRY PUMP
Removable Cover Plate

The removable cover plate can quickly and easily enter the engine driven water pumps without opening the pipe. The blockage can be removed and the engine driven water pumps can be put back into use in a few minutes. The impeller, seal, wear plate and flap valve can also be inspected or repaired through the cover plate opening.

Replaceable Wearplate

ST series engine driven trash pumps have replaceable wear plates, which are fixed on the cover plate and can be easily removed for inspection or maintenance. There is no need to replace expensive castings.

Drive Variations

ST series self-priming engine driven trailer mounted trash pumps can be used as the basic unit to connect the customer's power supply. It can also use flexible coupling or V-belt driven by motor. The pump can also be powered by a gasoline or diesel engine. An electric pump with "standby" engine power is also provided.

SPECIFICATION OF ENGINE DRIVEN TRASH & SLURRY PUMPS
Pump Connection Size

2" - 12" (50mm - 300mm)

Max. Pump Flowrate

1250m3/h (5504 GPM or 347L/S)

Max. Pump Head

63m (206.6 feet)

Speed Range

650rpm to 2900rpm

Impeller Type

Semi Open

Max. Temperature

176°F / 80°C

Max. Solids-handling

Capabilities up to 76.2mm(3")

Materials of Construction

Cast Iron, Cast Steel, Ductile Iron, Stainless Steel 304/316, CD4MCu

Products
Self priming Pumps
Solids Handling China Self priming Trash Pumps
Engine Driven Trash Pumps
Slurry Pumps
Centrifugal Pumps
Diaphragm Pumps
Oil Pumps
Submersible Pumps
DIMENSION OF ENGINE DRIVEN TRASH PUMPS
dimension of engine driven diesel powered trash pumps
