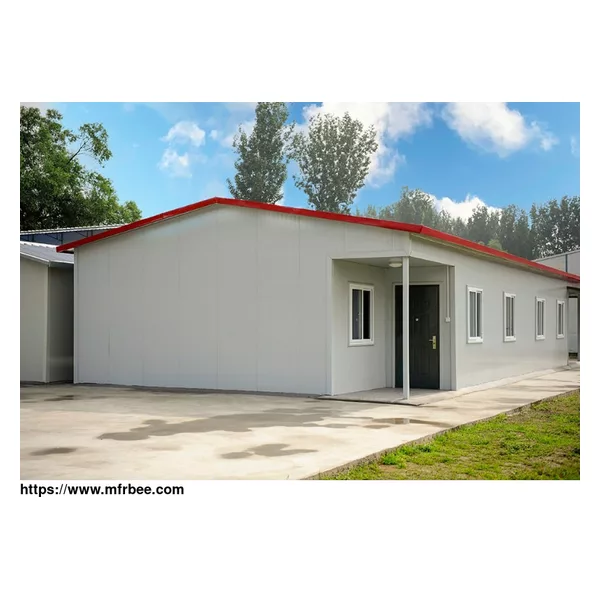

Prefab Steel Home

Prefabricated steel structure household housing has all the characteristics of mobile housing, as follows: All components are prefabricated with factory standardization, which is not only convenient for installation and disassembly, but also enrich the layout and function of the movable house by freely adding, reducing, and changing the position of doors, Windows and partitions; Color steel plate through adhesive steel plate and polystyrene bonding rolling, give full play to the characteristics of different materials, so that the prefab house has good fire resistance and heat preservation and sound insulation performance; Prefab house parts and materials can be recycled. After hot-dip galvanized the components, they can be used continuously for 20 years without generating any construction waste; The complete disassembly of glass and steel prefab homes components makes the house easy to transport and save costs.

Steel structure system makes prefab metal barn homes have excellent resistance to wind speed of 86.4km/h; The structure of light movable board house makes the house shows good integrity when it meets the earthquake disaster which is stronger than seismic fortification intensity 7 degrees; The high-rise activity room adopts cold-formed thin-wall light steel structure system, and the walls and roof are covered with color steel composite sandwich board; The roof of the prefab house with large slope adopts structural waterproof design to enhance the air tightness and water tightness of the house; Mobile homes are light in quality and easy to install. Six skilled workers can install 200 square meters of houses in a day; According to the actual application, choose to add ceiling, disassembly ground, disassembly of eaves, color steel doors, and other accessories, if wanted.

Product Parameters of Prefab Steel Building Homes

Prefab T type Steel Home Technical Specification

No. Sort Name Specification

1 Product Type Degree of Standardization custom-made product, designed and manufacture according to clients requirement

2 Size Length (m): No limited, increase expansion joint when length more than 200m.

3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans

4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m

5 Roof slope: slope is 1:10~1:5

6 Floors: less than 3 floors

7 Standard equipment Ground channel Galvanized steel panle compression, thickness is 0.8mm

8 Post Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.

9 Roof beam roof truss consist of thin sharpe steel by welding, component surface make antirust process

10 Purlin purlin is Ctype steel, the material is Q235, components surface make antirust process.

11 Wall beam wall beam is Ctype steel or square pipe, the material is Q235, component surface make antirust process

12 Floor made of floor master beam, secondary beam and floor surface plate(plywood)

13 wallboard 50~150mm thickness double surface color steel sandwich panel, white color

14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color

15 door color steel sandwich panel door,size:750mm*2000mm;

16 window PVC sliding window, with steel screen.

17 Options Ceiling mineral wool acoustic panel, aluminum buckle panel, PVC ceiling

18 Elevation floor Design based on local weather condition.

19 Canopy color steel sheet or color steel sandwich panel canopy

20 door compound wooden door, security door, aluminum alloy door

21 Electrical accessories Supply plan, design and construction according to relevant national norms(220V,50Hz, with lamp, switches and multi-function sockets.)

22 Water plumbing accessories Supply plan, design and construction according to relevant national norms

23 Sanitary ware Supply according to customer needs

24 Furniture and electric appliance Supply according to customer needs

25 Design technical data Roof dead load 0.3KN/sqm

26 Roof live load 0.5KN/sqm

27 Floor dead load 0.5KN/sqm

28 Floor live load 2KN/sqm

29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)

30 Earthquake resistant intensity 8 degree

31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)

32 Installation Installation tools electric drill, electric hammer, spanner, screwdriver, pulling rivet, etc, house installation needs electric power.

33 Installation efficiency Four skilled labor one day can erect 40m2\'s house body

34 Transport container each 40ft container could load 130~150Sqm house body material

Advantages of Pre Built Steel Homes

Reliable structure: wind speed resistance 120KM/H.

Good anti-corrosion performance: The structure is made of hot-dip galvanized steel pipe, which has good corrosion resistance, and anti-corrosion paint can be considered for economic models.

Short processing time: mechanized production, short processing cycle.

Excellent sealing performance: the structure is hidden in the house, and the outer plate and the tongue and groove system are seamlessly connected.

Easy installation: The main structure is connected by bolts and nuts, which greatly shortens the construction period.

Flexible design: personalized design can be carried out according to customer needs.

Zhongtai company is a professional steel frame construction manufacturer, the china flat pack container house is our main product, we can provide daily production capacity of 200 sets, fully meet your high-end, middle and low-end product needs, you are welcome to contact our company to discuss business.
