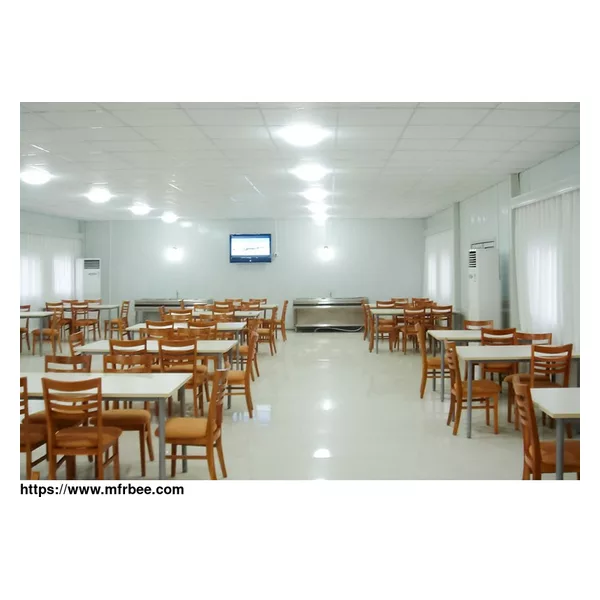

Prefab Steel Canteen

The pre fabricated steel house for Mess hall is a refinement of the function of the movable products, which can meet the temporary dining needs of the temporary construction camp staff. Since this product mainly uses steel square tubes and C-shaped purlins as the product skeleton, it has certain limitations in the span and height of the hall. If necessary, one or several rows of support columns need to be added inside the restaurant to extend the width of the restaurant to meet the needs of Usage requirements.

Product Parameters of Prefab Steel Canteen

Prefab T Type Steel Mess Hall Technical Specification

No. Sort Name Specification

1 Product Type Degree of Standardization custom-made product, designed and manufacture according to clients requirement

2 Size Length (m): No limited, increase expansion joint when length more than 200m.

3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans

4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m

5 Roof slope: slope is 1:10~1:5

6 Floors: less than 3 floors

7 Standard equipment Ground channel Galvanized steel panle compression, thickness is 0.8mm

8 Post Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.

9 Roof beam roof truss consist of thin sharpe steel by welding, component surface make antirust process

10 Purlin purlin is Ctype steel, the material is Q235, components surface make antirust process.

11 Wall beam wall beam is Ctype steel or square pipe, the material is Q235, component surface make antirust process

12 Floor made of floor master beam, secondary beam and floor surface plate(plywood)

13 wallboard 50~150mm thickness double surface color steel sandwich panel, white color

14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color

15 door color steel sandwich panel door,size:750mm*2000mm;

16 window PVC sliding window, with steel screen.

17 Options Ceiling mineral wool acoustic panel, aluminum buckle panel,PVC ceiling

18 Elevation floor Design based on local weather condition.

19 Canopy color steel sheet or color steel sandwich panel canopy

20 door compound wooden door, security door, aluminum alloy door

21 Electrical accessories Supply plan, design and construction according to relevant national norms(220V,50Hz, with lamp, switches and multi-function sockets.)

22 Water plumbing accessories Supply plan, design and construction according to relevant national norms

23 Sanitary ware Supply according to customer needs

24 Furniture and electric appliance Supply according to customer needs

25 Design technical data Roof dead load 0.3KN/sqm

26 Roof live load 0.5KN/sqm

27 Floor dead load 0.5KN/sqm

28 Floor live load 2KN/sqm

29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)

30 Earthquake resistant intensity 8 degree

31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)

32 Installation Installation tools electric drill, electric hammer, spanner, screwdriver, pulling rivet etc, house installation need electric power.

33 Installation efficiency Four skilled labor one day can erect 40m2\'s house body

34 Transport container each 40ft container could load 130~150Sqm house body material

Advantages of Prefab Steel Canteen

Factory design and production, the main structure is connected by bolts, standardized production, accurate component size, small error

Mechanized processing, component standards are interchangeable

The material is light in weight, easy to assemble and disassemble.

The manufacturing and installation cycle is short. During the disassembly and assembly process, the number of rooms can be reduced or increased without changing any original materials during the turnover according to the needs of customers, and the transportation is convenient.

Beautiful and durable, the product life of more than 15 years, according to the cycle of maintenance and replacement, can extend the product life of more than 10 years. one-time investment, high reuse value, comprehensive use of low cost。

Beautiful and free decoration, can be installed ceiling and corresponding electrical appliances, generally do not need to ceiling decoration wall, heat insulation effect is good

If you want to know more kinds of steel fabricated homes, please visit our website.

Zhongtai company is a professional metal frame house manufacturer, the flat pack container homes is our main product, we can provide daily production capacity of 200 sets, fully meet your high-end, middle and low-end product needs, you are welcome to contact our company to discuss business.
