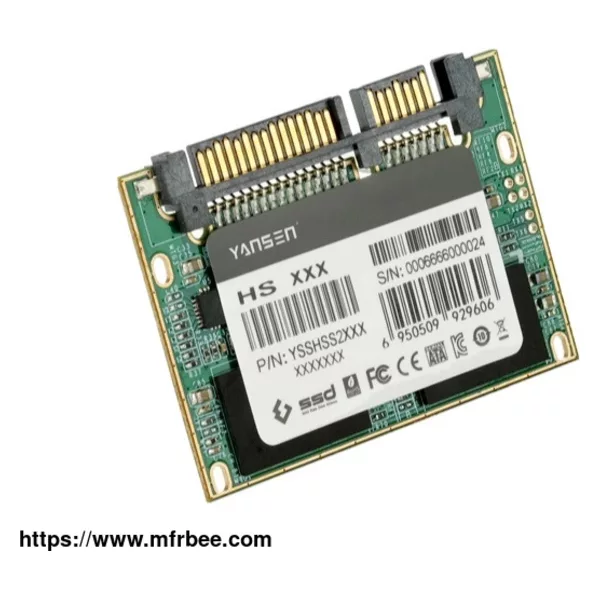

Half Slim YSSHSS2

Yansem's half slim ssd sata Flash module YSSHSS2 is a compact and reliable storage solution that measures less than 40% of conventional 1.8" SATA SSDs. With a form factor of SATA 22pin, and utilizing SATA 3.1 interface, this Chinese SSD can deliver exceptional read/write speed with great performance for heavy-loading embedded or server operations with space constraints for host computing systems. It comes with a capacity range of 8GB to 256GB utilizing high reliability SLC/MLC NAND Flash.

Additionally, YSSHSS2 features power management, TRIM, S.M.A.R.T., NCQ, and wear-leveling technologies. It's the ideal solution for portable applications and extreme environmental operations.

Half Slim YSSHSS2 Specifications

Model YSSHSS2XXXXXXXXXX

Dimensions Half Slim L54.0mm * W39.0mm * H4.5mm Error±0.15mm

Form factor SATA 22pin

Interface SATA III 6Gbps

Capacity 8GB 16GB 32GB 64GB 128GB

NAND Flash SLC SLC SLC MLC MLC

Sequential Read (MB/s) 170~200 220~300 480~520 450~500 450~500

Sequential Write (MB/s) 40~70 80~120 220~250 70~130 130~160

TBW 355TB 710TB 1420TB 85TB 170TB

4K Random read(IOPS) 20000(256GB)

4K Random write(IOPS) 36000(256GB)

Input voltage DC 5V±5%

Power comsumption Idle 0.45W(256GB)

Power comsumption Active 2.06W(256GB)

Data retension 10years below 25 degree

MTBF 2 million hours

ECC Hardware BCH ECC capable of correcting errors up to 66- bit/1KB

Features Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling

Operating Temp. -20℃～75℃，-40℃～85℃

Storage Temp. -55℃～105℃

Humidity 5-95%

Warranty/support 3-year warranty with free technical support

KingSpec owns two brands: YANSEN (Industrial wide temperature grade) and KingSpec(Consumer grade). The company team has been dedicating time and investments into solid state drive development and production improvement contentiously.
