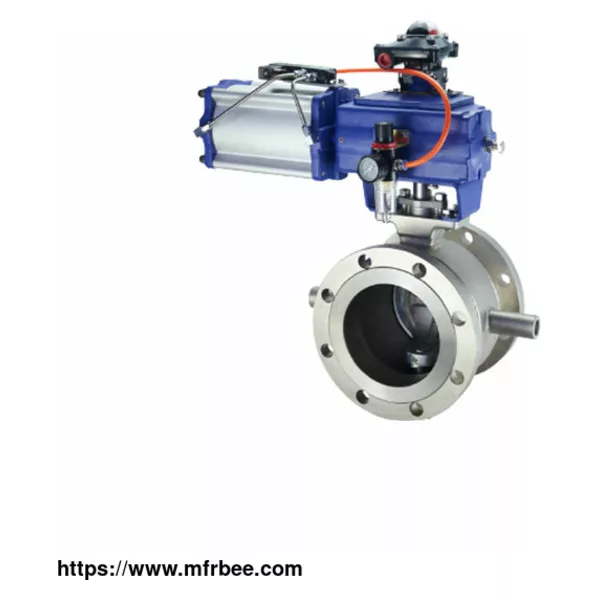

The adjustment performance ofsegmented ball control valve is the best among different types of ball valves, the flow characteristics are equal percentages, and the adjustable ratio is up to 100:1. Thefisher segmented ball valve has a shearing effect between the V-shaped incision and the metal valve seat, which is especially suitable for media containing fibers, small solid particles, slurry and other media. For more more fisher segmentedpneumatic ball valve specifications request, please contact with Utmostcontrol valve manufacturers china.
Segmental Ball Valve Technical Specification
Size: 1/2"~16"
Pressure: Class ANSI #150~300, PN10~PN64
Ball segment valves body material: Carbon steel, Stainless steel, or others
Standard compliance: B16.34, DIN3202 or equivalents
End connections: Flanged Ends
Direct mounting with pneumatic or electric actuators
Full port or regular bore; double block and bleed
Segmental Ball Valve Datas
Performance Parameter of V Type Ball Valve
Size range | DN 25~250mm NPS 1”-10” (Wafer type) |
DN 25~500mm NPS 1”-20” (flange type) | |
Pressure rating | PN 10/16/25/40/63 |
ANSI | 150/300/600 |
Operating temperature Hard seal | -29...+450 degrees Celsius |
Sealing class Hard seal Class | IV seal |
Soft seal Class | VI seal |
Body material | cast steel, stainless steel, special material |
Valve core/stem material | stainless steel, special material |
Seat material: | stainless steel surfacing hard alloy, PEEK, PCTFE, Deweilong (flange type) |
Stainless steel surfacing hard alloy (wafer type) | |
Structure length ISA S75.04, IEC/DIN 534-3-2 (flange type) | |
Haidun Factory Standard (Wafer Type) | |
Flange standard | GB/T 9113.1, JB/T 79.1, HG 20592,ASME B 16.34, ISO 7005 (other connection sizes can be customized on demand) |
Application range | Pulp and paper, sewage treatment, food and beverage, chemical industry, energy industry, steel industry, etc. |
