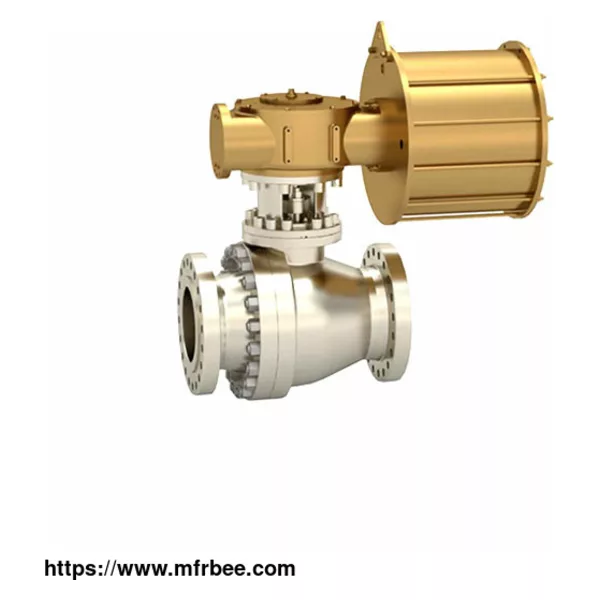

The pneumatic 3 way ball valve from UTMOSTpneumatic ball valve factory can be used under extremely harsh application conditions, such as high temperature, high pressure, high frequency, abrasion, corrosive medium, and crystalline medium. The stainless steel pneumaticball valve has its own characteristics and advantages, such as short opening and closing time, stable torque, long service life and reliable sealing which can ensure free opening and closing. UTMOST pneumatic ball valve factory is one of professionalpneumatic ball valve manufacturers. If you want to know thepneumatic ball valve price and get oem ball valve, please contact us.
Pneumatic Actuated Ball Valve Technical Specification
Size: From 2" up to 24”
Body material: Carbon Steel, Alloy Steel, Stainless steel,
Nickel-based High-temperature Alloys, Titanium Alloys, etc.
End connections: Flanged(FF, RF, RTJ)
Pneumatic ball valve working pressure: From Class150LB to Class2500LB
Standard compliance: ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608
For more other valve control system specifications request, please contact with Utmost china valve factory.
What is the Difference between Pneumatic Ball Valve and Other Valves?
UTMOST pneumatic ball valve factory's actuator operated ball valve compared with gate valves, stop valves, and our wholesale butterfly valve, the medium flow resistance is extremely low. The valve can be driven by pneumatic, electric, hydraulic, gas-liquid linkage, electric-liquid linkage, manual, etc. Utmost has its own brand of pneumatic actuator, and can also select the brand and structure of actuator according to the customers' requirements.
Pneumatic Actuated Ball Valve Datas
Technical Performance of Pneumatic Control valve Ball Valve
Structural Style | BA・F, BA-S, BA-P |
Nominal Size DN/NPS | NPSl/4 (DN6> — NPS24(DN600) |
Nominal Pressure PN/ANSI | Classl50 (PN20) — Class2500 (PN420) |
Applicable Temperature | -196°C — 816°C |
Valve Housing Material | Carbon Steel, Alloy Steel, Stainless steel, |
Nickel-based High-temperature Alloys, Titanium Alloys | |
Valve Structure | 2/3 Piece Type, Cast/Forged |
Suitable Media | Oxygen, Hydrogen, Slag Water, Cinder |
Actuator Type | Pneumatic Rack and Pinion Type, Pneumatic Fork Type, Electric, Electro-hydraulic, Gas-hydraulic |
Seal Test Standards | API 598, MSSSP-61, ISO 5208, ANSI/FCI 70-2 |
Reference Standards | ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608 |
As one ofchina valves manufacturers, we will do our best to meet all the needs of customers.
