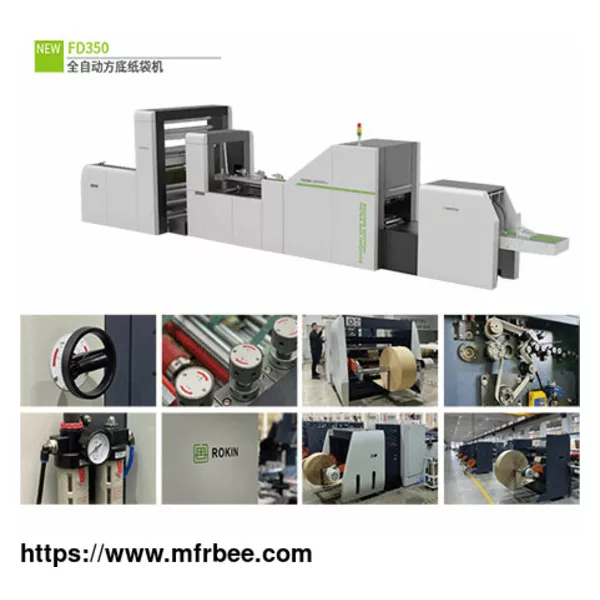

Square Botton Paper Bag Machine

Minimum Order: 1

Packaging: N/A

Delivery: N/A

This square bottom paper bag making machine is used for making paper bags automatically from unbleached paper or printed paper roll, such as Kraft paper, food gradepaper, etc.

It is completed by auto center gluing, printing tracking, material folding, fixed-length cutting, bottom indentation, bottom folding, bottom gluing, bag bottom forming, and bag collecting at one time.

This is a square bottom bag making machine that adopts motion controller, servo motor programming. And the square bottom paper bag machine can be operated easily and has efficient production, stable running.

In addition, it can produce various specifications and sizes of square bottom paper bags, bread bags, leisure food bags, shopping bags and other environmental paper bags.

As one of the professional square bottom paper bag manufacturers, Growing offers high-quality square bottom paper bag making machines for sale. Contact us!

Specification of Square Botton Paper Bag Machine

Technical parameters

F model RKFD-220 RKFD-330 RKFD-450

Bag making speed 50-220pcs/min 50-200pcs/min 150-160pcs/min

Mechanical speed 260pcs/min 220pcs/min 200pcs/min

Paper bag length 190-430mm 280510mm 260-600mm

Paper bag width 80220mm 150-330mm 220450mm

Bottom width 50-120mm 70-180mm 60-180mm

Paper thickness 50-150g/n 60-1509/m² 60-ISOg/m²

Paper roll width 290-71 Omm 470-1000mm 560-1280mm

Paper roll diameter 1300mm 1300mm 1200mm

Inner diameter of paper core 76mm 76mm 76mm

Total power 26KW 30KW 15KW

Working ar source Xllg/rHnOGMPa >0.12m²/min 0.6MPa > 0.120^/0110 0.6MPa

Total Weight 5600kg 8000kg 10000kg

Overall dimensions 8600x2600x1900mm 9500x2600* 1900mm 10600 x 3000 x1800mm

As one of packing machine manufacturers, we can offer sorts of related products for sale, anything you need, please contact us.
