Product sourcing details

Supplier: Shaoxing Maq Import & Export Co.,Ltd

Purchasing information

Lead time
15 Days

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.


Details

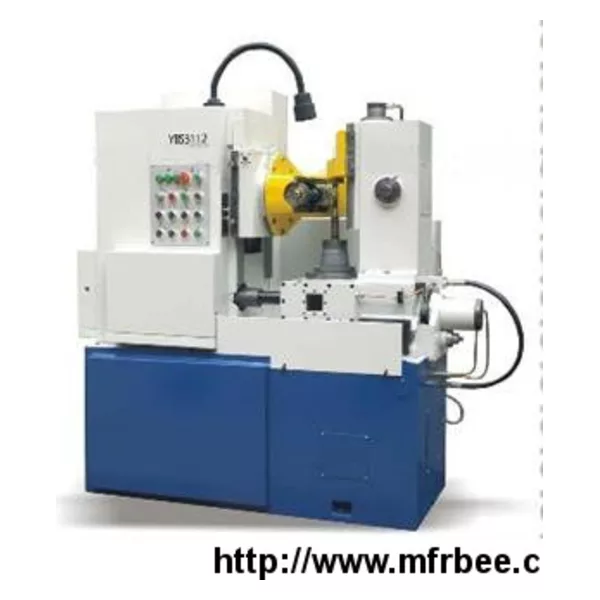

Model YBS3112 Max. diameter of workpiece 125mm Max. module of workpiece 3mm Min Teeth of workpiece 3 Max rotary angle or headstock 240° Max. axial motion of cutters 30mm Tapered bore spindle Morse No.3 Max. diameter and length of cutter
 85mmX65mm
hob arbor diameter 22, 13 Distance from hob center to table face Max.260mm Min. 150mm
Center distance from hob to working center Max. 90mm Min. 10mm Worktable center bore diameter 40 Range of spindle speed 100~620r.p.mRange of axial feed
 0.1~2mm/table turn Main motor power
 1.1kw Net. Weight
 1300kg Dimensions
 1370mmx950mmx1350mm
 http://www.shaoxingmachine.com
