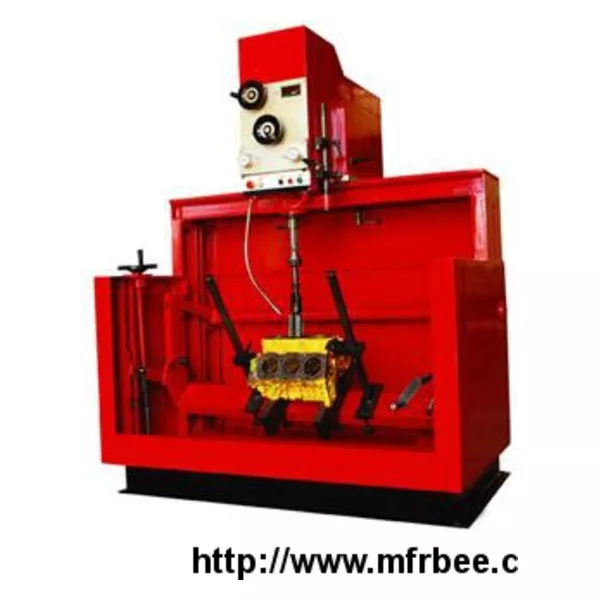

Cylinder Honing Machine TH170

Packaging
N/A
Delivery
15 Days
Model TH170 Maximum honing diameter Φ170 mm Minimum honing diameter with automatic expansion honer Φ35 mm Honer max. stoke 300 mm Cylinder bearing plate vertical stroke 200 mm Workpiece max. length 1200 mm Cylinder bearing plates width 400 mm Workpiece max. height 600 mm Spindle head longitudinal stroke 1100 mm Spindle head transversal stroke 80 mm Spindle head motor 2 HP Hydraulic plant motor 1.5 HP Electropump power 0.30 HP Spindle rotating speed 100-300 rpm Spindle alternative motion speed 0-18 m/min Overall dimensions(L×W×H) 1800×1300×2200 mm Packing dimensions(L×W×H) 2000×1500×2400 mm N.W./G.W. 1200 /1400 kg
http://www.shaoxingmachine.com
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2007
  • Address:shaoxing
  • Contact:mu mu
more images of Cylinder Honing Machine TH170
