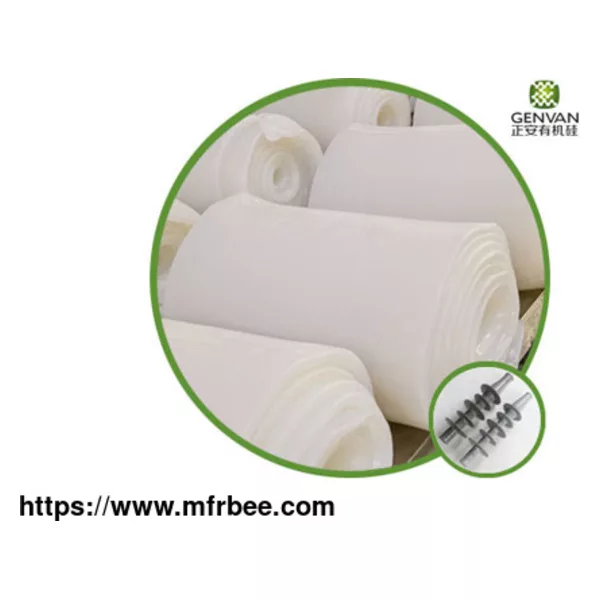

Silicone Rubber for Cable Accessories (DBPMH/Platinum)

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

GA-9442/GA-9443 platinum rubber have good fluidity, suitable for high voltage injection molding, compression molding, or extrusion molding techniques to produce power cable accessories.

GA-9440E cable rubber has good fluidity property, suitable for producing power electric cable accessories under molding or extrusion molding technique. this product has excellent mechanical property.

Features of Silicone Rubber for Cable Accessories (DBPMH/Platinum)

Injection molding

Anti-pollution, and anti-aging

Excellent electrical performance

Excellent weather ability

Good extrusion property

Excellent electrical performance

High elongation

Application: Cable terminal, Electric cable accessories, Shrinkage product, Shrinkage pipe sleeve

Differences of Silicone Rubber for Cable Accessories (DBPMH/Platinum)

GA-9442/GA-9443 Series Heat Cure Rubber

GA-9440 Heat Cure Rubber

Typical characteristics

Product code GA-9440

Appearance Translucent

William plasticity 150

Hardness (ShoreA) 43

Density(g/cm³) 1.135

Tensile strength(Mpa) 10.0

Elongation(%) 900

Fixed tensile set(200%*175℃*8H*30min) 7

Tear strength(KN/m) 45

Dielectric constant at 100HZ 3.03

Dissipation factor at 100HZ 0.0029

Tracking resistance ---

Dielectric strength(KV/mm) 23

Volume Resistivity(Ohm.cm) 1.0*1015

There are many silicone rubber manufacturers in china, but we are one of the best choices for you.

Country: China (Mainland)
Business Type: Manufacturer
Market:Oceania
Founded Year:
Address:B3 Building,2nd District,Xicheng Industrial,Hengli Town,Dongguan,China
Contact:genvan .com
