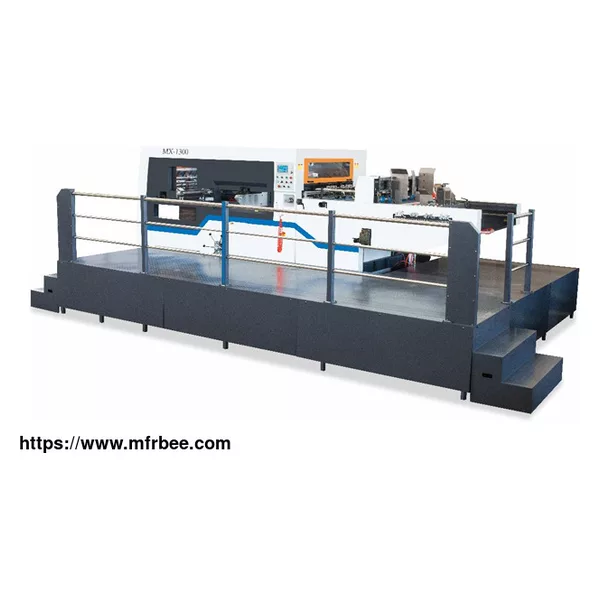

MX Series Bottom Feeding Automatic Die-cutting and Creasing Machine

The key parts of Bottom Feeding Automatic Die Cutting and Creasing Machine, such as the bottom platform, moving platform, upper platform and wall panel are made of high-strength nodular cast iron, which are not easy to deform when working under high pressure.

Specification of MX Series Bottom Feeding Automatic Die-cutting and Creasing Machine

Specifications

Model MX1300 MX1450 MX1300P MX1450P

Max. Sheet Size 1300×940 1450×1110 1300×940 1450×1110

Min. Sheet Size 450×420 550×450 450×420 550×450

Max. Die-cutting Size 1280×923 1430×1100 1280×923 1430×1100

Inner Size of The Chase 1320×946 1512×1124 1320×946 1512×1124

Max. Machine Speed 5500 Sheets 5000 Sheets 5500 Sheets 5000 Sheets

Sheet Weight 150-450 150-450 150-450 150-450

Installed Power 34 34 34.5 34.5

Overall Dimension 7820×5420×2370 8388×5460×2290 9060×5470×2370 9797×5460×2290

Total Weight 21000 22000 23000 25000

Performance of MX Series Bottom Feeding Automatic Die-cutting and Creasing Machine

01. The paper feeding transmission adopts the mechanical transmission of the main machine, which is stable in operation; the paper feeding efficiency is very high without stopping; the unique anti-scratch mechanism is adopted and the scratches of paper surface can be reduced effectively; the paper feeding is controlled by the servo motor, which is stable in paper feeding and precision in positioning.

02. The key parts of the die cutting and creasing machine , such as the bottom platform, moving platform, upper platform and wall panel are made of high-strength nodular cast iron, which is not easy to deform when working under high pressure. It is processed by a large imported five-sided machining center at one time, which can ensure the accuracy and durability of the components.

03. The cutting and creasing machine adopts a precise worm and crankshaft connecting rod mechanism to make the transmission stable. All of them are made of high-grade alloy material. Large imported machine tools are used for confidential grinding and processing with stable operation, large die-cutting pressure and high point pressure maintaining function.

04. High-resolution touch screen of the creasing and die cutting machine is adopted for human-computer interaction; PLC program control and fault monitoring system cooperate with LCD screen, which is convenient for staff to monitor machine operation and solve problems in time.

05. The tooth row body is made of special super hard aluminum alloy profile with anodized surface, strong rigidity, light weight and small inertia, which can complete accurate die cutting and control in high speed movement. The chain adopts imported ones，which can ensure the machine operation accuracy.

06. High quality pneumatic clutch with long service life, low noise, stable braking, quick clutch and large transmission power, which can make the performance of the cutting creasing machine more stable and durable.

07. Adopt the paper receiving platform to receive paper, the paper pile will automatically descend and when the paper full, it will alarm and decelerate automatically. Compared with automatic paper cleaning device, it can ensure the stable operation, simple adjustment and tidy paper receiving. Anti-paper back photoelectric detection switch can prevent the paper pile too high and paper roll up in the paper receiving platform.

Adventures of MX Series Bottom Feeding Automatic Die Cutting & Creasing Services

1. Different designs are available according to customer requests.

2. Excellent quality testing equipment, 100% inspection on critical.

Application of MX Series Bottom Feeding Automatic Die-cutting and Creasing Machine

MX Series Bottom Feeding Automatic Die-cutting and Creasing Machine is an important piece of equipment for post-press packaging processing and molding.

If you want to find a professional packing machine factory, please contact us, and we will be your best partner.
