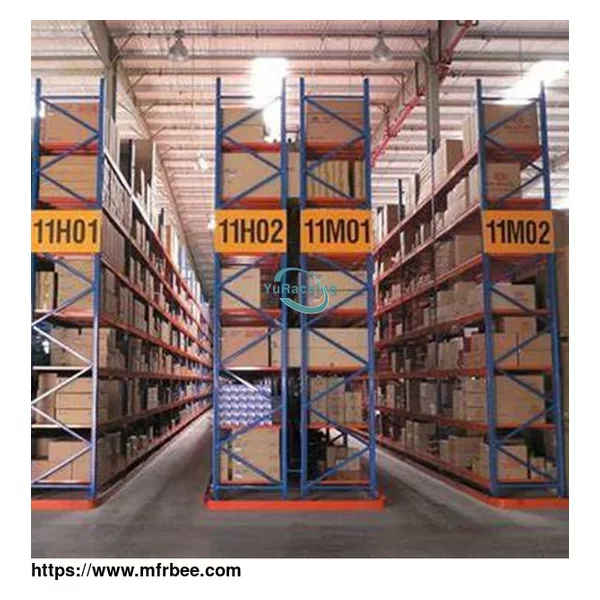

Narrow Aisle Pallet Racking

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

What is narrow aisle rack? Narrow Aisle Pallet Racking is a high-density VNA Pallet Racking solution, ideal for the space limited warehouse. VNA racking system needs less floor area for aisles (around 1.6-1.8m), and very narrow aisle rack's height can be up to 22m, saving warehouse space greatly.

How to use vna rack? This kind of Very Narrow Aisle pallet racking system uses the warehouse floor area greatly. By cooperating with the special narrow aisle racking forklift, which is designed to work in the narrow aisle less than 1.6m, vna pallet racks can greatly save your warehouse spaces. Therefore, The very narrow aisle (VNA) pallet racking system needs special side loading forklifts to load/unload pallets in the narrow aisle.

Why choose Yuracking as your vna rack manufacturer and supplier? Besides selling narrow aisle pallet racking, our VNA racking designer always fix the floor guide rails for the whole very narrow aisle pallet racking system, helping the forklift drivers operate more easily and making the VNA Pallet Racking solution available. Contact this professional warehouse rack company to make an VNA Racking System solutions for you right now!

Narrow Aisle Racking Advantages and Disadvantages

Narrow Aisle Pallet Racking Advantages

Same as selective pallet racking, narrow aisle pallet racking is 100% access to all pallets;

Narrow isle racking spends much less aisle space, just need around 1.6m floor area for the aisle, greatly saving your warehouse area and improve your warehouse utilization rate;

You can use narrow aisle pallet racking to make high density pallet racking solutions, and it can improve the your warehouse space usage around 50%;

Narrow aisle pallet racking is floor space saving, it is a cost effective warehouse pallet racking solution.

VNA racking system can be used for industrial warehouse shelving and racking solutions, warehouse in pharmaceutical industry, and FMCG warehouse management.

Narrow Aisle Pallet Racking Disadvantages

narrow aisle racking system needs special forklifts for narrow aisle;

Compared with selective pallet racking, narrow aisle pallet racking may cost more money;

Narrow aisle pallet racking is not commonly used in all warehouses.

VNA racking vs selective pallet racks

Similarities between VNA Racking and Selective Pallet Racks

Similar Shelving Structure:

VNA racking is a storage shelf redesigned from the traditional selective pallet racks, therefore, the VNA racking system integrates the basic structure and characteristics of selective pallet racks.

Use Forklifts

Both selective pallet racks and VNA racking system are all operated by forklifts, and the pallet positions of each group of the two pallet racks are basically the same.

Pallet Choices

What kind of pallet is used for loading the cargos. Both selective pallet racks and VNA racking system have similarities in choosing. It is determined by the properties of goods and the way of assembly.

Need Operation Requirements

Both selective pallet racks and VNA racking system are all heavy-duty pallet racks. They usually carry out warehousing activities for large goods such as industrial products, so some requirements for forklift operators and warehouse managers are needed.

Different Between VNA Racking and Selective Pallet Racks

Different Operations

Selective pallet racks belong to the low-level pallet storage rack, whichmeans it can be operated by ordinary forklifts or even manually. The VNA racks are high-rise pallet racks, and are generally operated by special forklifts.

Different Heights

Selective pallet racks are generally 3-5 layers, while VNA racks are much higher than it, generally 10 meters or more. In this way, VNA racking system can store more goods, and the storage of VNA racking system is intensive.

Different Aisle Width

Very narrow aisle racking, as the name suggested, are named after the narrow corridors among each row of pallet racks. This is the distinctive feature of VNA racking system; While selective pallet racks reserve a comparatively wider space for the adaptation area and turning width of general forklifts.

Different Structures

From the appearance, the very narrow aisle racking is composed of two side-by-side pallet racks connected. The selective pallet racks are placed singlely, and at most the main and auxiliarypallet racks can be split and reorganized.

Narrow Aisle Pallet Racking Specification

VNA Racking System Materials Steel Q235

VNA Racking System Size Range Length: 1500-3600mm

VNA Racking Aisle Width: 900/1000/1100/1200mm

Height: 2000-22000mm

VNA Racking System Thickness Range 1.5mm-3.0mm

VNA Racking System Load Capacity 1000-4000kg/layer; 6000-25000kg/bay

Surface Material Choices for VNA Racking System Powder Coated or Galvanized

VNA Racking System Benefits Anti-rust, Corrosion-protection

Aisle Size Range of VNA Racking System Narrow aisle: 1600mm-1800mm

Forklift Types of VNA Racking System Special Side Loading Forklift to Very Narrow Aisle Racking

VNA Racking System Sample/OEM/ODM Available

VNA Racking System Parts Choices Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet)

Bracer: pallet size: L=bracer length*W1.1m*H1.1m

Beam: pallet size: L=beam length*W1.1m*H1.1m-1.25m (GP/HQ container)

VNA Racking System Delivery Time 15 days after deposit

All sizes of VNA Racking System can be customized as your demands

Narrow Aisle Pallet Racking Beam Load Capacity

Box Beam Length (mm)

Section (mm) Loading (Kg) 1500mm 2300mm 2400mm 2500mm 2700mm 2800mm 3000mm 3300mm

80*50*1.5mm 3400Kg 1400Kg 1300Kg 1200Kg 900Kg 800Kg 700Kg 600Kg

100*50*1.5mm 5600Kg 2500Kg 2300Kg 1800Kg 1500Kg 1400Kg 1250Kg 1000Kg

120*50*1.5mm 8900Kg 3700Kg 3500Kg 2700Kg 2300Kg 2100Kg 1850Kg 1500Kg

140*50*1.5mm 12000Kg 5300Kg 5000Kg 3800Kg 3300Kg 3100Kg 2700Kg 2200Kg

160*50*1.5mm 13500Kg 7400Kg 6800Kg 5300Kg 4500Kg 4200Kg 3600Kg 3000Kg

140*50*2.0mm 12800Kg 7000Kg 6500Kg 5000Kg 4300Kg 4000Kg 3500Kg 2900Kg

160*50*2.0mm 15000Kg 8000Kg 7400Kg 6900Kg 6000Kg 5500Kg 4500Kg 4000Kg

Narrow Aisle Pallet Racking Upright Frame Load Capacity

Upright Section Size (mm)

Beam Space

(mm) Loading

(kg) 80*60*2.0 90*60*2.0 90*70*2.0 100*70*2.0 100*75*2.0 120*75*2.0 120*95*2.0 120*95*2.5

≧1500mm ≦5000Kg ≦7000Kg ≦8500Kg ≦10500Kg ≦12000Kg ≦14500Kg ≦16500Kg ≦18500Kg

1400-1500mm ≦6000Kg ≦8000Kg ≦9000Kg ≦11500Kg ≦13500Kg ≦15500Kg ≦18000Kg ≦20000Kg

≦1400mm ≦8000Kg ≦9000Kg ≦10000Kg ≦12500Kg ≦14500Kg ≦17500Kg ≦19500Kg ≦22000Kg
