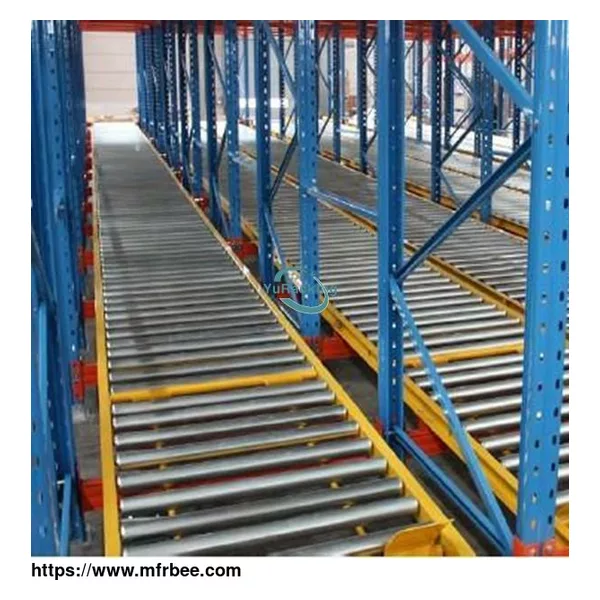

Pallet Flow Racking, also called Pallet Gravity Racking, or Gravity Roller Pallet Racking, is high density storage solution, FIFO (first in first out). The main parts of gravity flow pallet racking: frame, connect beam, rollers, the pallets go into the channel smoothly as the roller gravity design. In terms of suchflow through racking
The Features of Pallet Flow Racking
·
Fewer Aisle, around 70% space saving;
8-9 pallets position in the depth direction;
Forklift no need go into the racking area, just put the pallets on the rollers;
Saving space and labor cost, forklift no need go into the aisle, few damages happens.
·
The Specification of Pallet Flow Racking
Material | Steel Q235 |
Size | Customized as the warehouse demands |
Thickness | 1.5mm-3.0mm |
Load Capacity | 1000-1500kg/pallet; 6000-18000kg/bay |
Surface | Powder Coated or Galvanized |
Feature | Anti-rust, Corrosion-protection |
Forklift Type | Conventional forklift fixes the racking top pallets height |
Sample/OEM/ODM | Available |
Packing | Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet) |
Bracer: pallet size: L=bracer length*W1.1m*H1.1m | |
Delivery Time | 15 days after deposit |
Pallet Flow Racking Upright Frame Load Capacity
Upright Section Size (mm) | |||||||||
Beam Space
(mm) |
Loading(kg) | 80*60*2.0 | 90*60*2.0 | 90*70*2.0 | 100*70*2.0 | 100*75*2.0 | 120*75*2.0 | 120*95*2.0 | 120*95*2.5 |
≧1500mm | ≦5000Kg | ≦7000Kg | ≦8500Kg | ≦10500Kg | ≦12000Kg | ≦14500Kg | ≦16500Kg | ≦18500Kg | |
1400-1500mm | ≦6000Kg | ≦8000Kg | ≦9000Kg | ≦11500Kg | ≦13500Kg | ≦15500Kg | ≦18000Kg | ≦20000Kg | |
≦1400mm | ≦8000Kg | ≦9000Kg | ≦10000Kg | ≦12500Kg | ≦14500Kg | ≦17500Kg | ≦19500Kg | ≦22000Kg |
