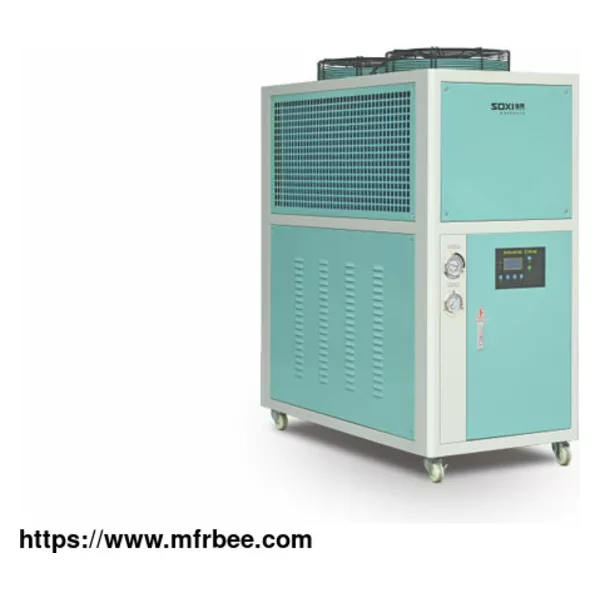

AIR COOLED WATER CHILLER

Minimum Order
1
Packaging
Wooden Crate
Delivery
7-10 Days
The air cooled industrial chiller adopts a finned condenser, which has fast heat conduction and a good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low-temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the compressor power is from 3HP to 50HP, and the cooling capacity can reach 8250~139400 Kcal/hr.

Specifications Of Chilled Water Air Conditioning System
Standard specifications SCB-03A SCB-05A SCB-08A SCB-10A SCB-15A SCB-20A SCB-30A SCB-40A SCB-50A
Medium Water
Medium temperature Range ℃ 7~25℃
Cooling capacity Kcal/h 8250 11324 20540 28400 43100 58600 86200 117200 139400
W 29000 38650 77300 97000 14200 199850 294400 399700 476000
Compressor Type Hermetic scroll type or piston
Refrigerant R22/R407/R134/R410
Power KW 2.2 3.3 6 10 11.25 15 22.5 40 37.5
Chilled Pump power 0.37 0.37 0.75 0.75 1.5 1.5 3 5 5
water Pump pressure Mpa 0.2 0.2 0.2 0.205 0.205 0.22 0.24 0.24 0.24
Flowrate L/Min 50-100 50-100 100-200 100-200 160-320 160-320 250-500 630-1200 630-1200
Tank L 65 65 140 220 380 500 520 630 800
In/Out pipe size G1/4”X 4 G1/4”X 4 G1-1/2” G2” G1/4”X 4 G1/4”X 4 G1” G1-1/2”
Cooling fan Air volume M3/h 2390 3900 7800 9200 12600 18900 23400 44000 39000
Fan diameter mm 400X1 350X2 450X2 450X2 500X3 550X3 630X3 600X6 600X6
Electric power source Specification 3P 380V 50HZ
Current A 6 9 12 15 27 38 58 72 95
Dimensions (LXWXH) mm 1170X600X1130 1420X800X1500 2150X850X1800 2300X1050X1760 2600X1050X1800 2600X1780X1845 2600X1780X1845
Weight KG 155 155 320 420 95 95 125 135 150

Features Of Air Cooled Water Chiller
Adopt imported compressor

The copper tube is welded without oxygen

Efficient evaporator and condenser, energy saving

The high-power equipment adopts multi-group compressor,

Automatically adjust start and stop as needed

Equipped with communication interface, can undertake future industry 4.0.

As one of air cooled water chiller manufacturers and air cooled water chiller suppliers, we can offer kinds of industrial air chillers for sale, if you have needs, please contact us.

Now the price of auxiliary equipment for plastics processing is affordable, if you have needs to buy a high quality plastic processing machine, please leave us a message.
