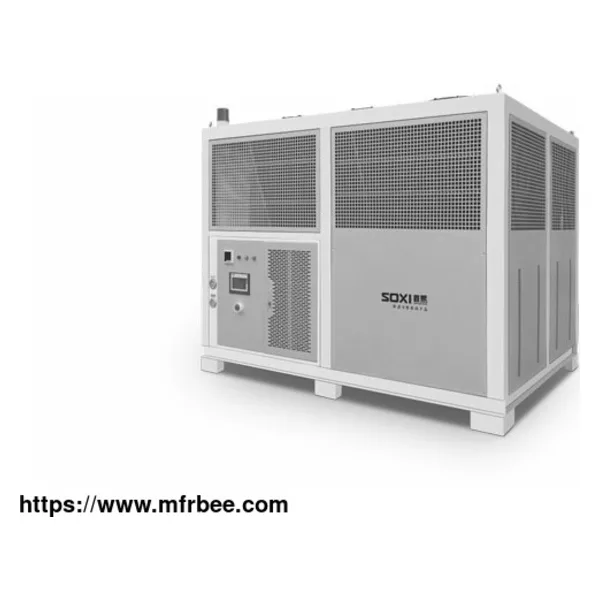

AIR COOLED SCREW CHILLER

Minimum Order
1
Packaging
Wooden Crate
Delivery
7-10 Days
The air cooled screw chiller adopts a finned condenser, which has fast heat conduction and good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the compressor power ranges from 40HP to 240HP, and the cooling capacity can reach 88924~581360 Kcal/hr.

Specifications Of Air Cooled Screw Chiller
Standard specifications SCC-40AS SCC-50AS SCC-60AS SCC-70AS SCC-80AS SCC-100AS SCC-120AS
Total power KW 35 46 56 62 75 98 112
Maximum operating current A 69 91 121 128 153 193 220
Cooling capacity Kcal/h 88924 11174 128226 180600 213280 242520 290680
KW 103.4 140 184 206 244 316 365
Refrigerant Model R22(R407C)
Charge Kg 28 35 43 53 60 72 86
Way to control Externally balanced thermal expansion valve
Compressor Type Semi-closed screw type
Power KW 29.6 39 49 53 65 80 90
Start method Y-Δ
Energy adjustment range % 0-33%-66%-100% / 0-25%-50%-75%-100%
Evaporator Types Dry shell and tube type (plate exchange type)
Chilled water M3/h 18 23 26 36 43 50 60
Inlet and outlet pipe diameter Inch 3” 3” 3” 4” 4” 4” 5”
Condenser Air-cooled high-efficiency copper pipe sleeve aluminum sheet
Fan Types M3/h High-power axial fan
Power KW 7 7 7 10 10 12 12
Cooling air volume M3/h 40000 51000 63000 80000 91000 105000 122000
Electric power source Specification 3P 380V 50HZ
Dimensions Long mm 2200 2400 2400 3150 3150 4100 4100
Width mm 1560 1760 2000 2140 2140 1890 20000
High mm 2150 2180 2180 2200 2200 2200 2200
Unit weight KG 1300 1620 1930 2260 2420 2860 3250
Running weight KG 1390 1870 2210 2420 2680 3020 3460

Features Of Air Cooled Screw Chiller
Adopt imported compressor

The copper tube is welded without oxygen

Efficient evaporator and condenser, energy saving

The high-power equipment adopts multi-group compressor,

Automatically adjust start and stop as needed

Equipped with communication interface, can undertake future industry 4.0.

If you want to know more about air cooled screw chiller working principle, please visit our website.

As a plastic machine factory, we will do our best to provide more types of plastics machinery for sale, anything you need, please contact us.
