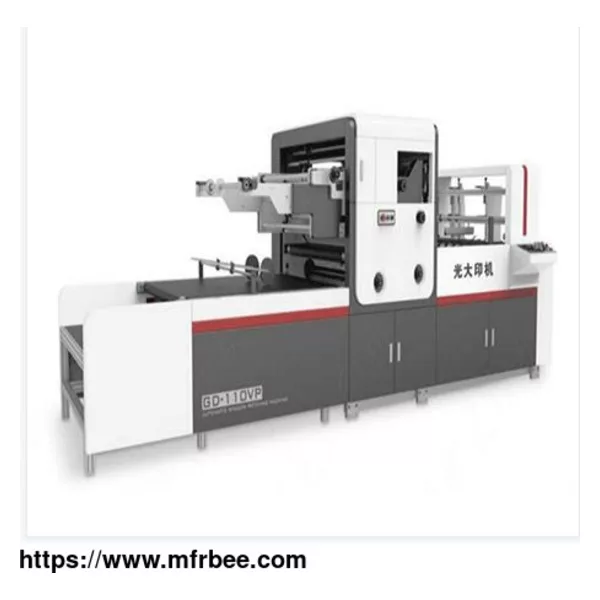

Automatic Window Patching Machine

Packaging: N/A

Delivery: N/A

TC-800Q full-automatic window pasting machine is the special equipment for pasting window colour boxes and colour boxes.

This automatic window patching machine is suitable for pasting all window products such as mobile phone boxes, wine boxes, napkin boxes, etc. What's more, it is one of the most advanced window pasting machines in China at present. The perfect humanized design concept makes this automatic window patching machine have the characteristics of high efficiency, high precision, high stability and simple operation.

This automatic window patching machine is suitable for paper jam and corrugated paper. The paper pile is separated by a single sheet in the way of bottom drawing without stopping the machine to feed paper.

After pushing the specified position, printing glue on the flexible plate module and cutting and cutting the stable and accurate diaphragm, the film pasting function is realized on the windows of a tissue box, gift box, toy box shirt box, milk box, etc.

Mechanical distribution of paper, positioning, glueing, sticking film, paper are five major parts.

This automatic window patching machine has a reasonable design, stable quality and is simple operated and easy to learn. It is a sharp weapon in the printing and packaging industry.

Features of Automatic Window Patching Machine

lectrical equipment

Second, electrical equipment

Frequency conversion speed regulators for electrical components, programmable controllers, i.e. PLC computers, photoelectric switches, etc. are all set up

Da Huichuan and other world-famous brands. General switches, contactors and relays are all made by Schneider, France.

Processed Parts

The design is stable and does not cut corners. The main wallboard of the whole machine is made of 30mm thick steel and processed by the processing centre.

Only the glueing roller and pasting roller of the machine can be processed by a high-precision numerical control lathe at one time. All ex-factory parts have been inspected to ensure they are qualified. If there is any discrepancy, our company shall bear legal responsibility.

Belt

The paper feeding department adopts the brand of ever-power imported from the United States and cooperates with our company's unique pallet intermittent paper feeding method to ensure smooth and stable paper feeding and prevent double sheets and empty sheets. The air suction belt and paper delivery belt use an imported Sieglin leather belt, which is durable.

assembly standards

Third, assembly standards

The assembly requirements of all models of our company are relatively high, so our company has formulated many higher standard parts tolerances

For assembly level, if the tolerance of axle position is set within 0.02mm, the hardness of quenched parts should be greater than 40, and the best process-hot assembly should be used for bearing assembly, so as to prevent dead beating and hard beating. Clear tolerance records should be kept for the assembled parts, and the empty car operation should be ensured for 48 hours. The axle position temperature should not be higher than the indoor temperature by 15 degrees, and 1,000 sheets of 350 grams of paper should be used for travelling.

Never stop the car when driving, and resolutely eliminate the noise that the whole machine should not have. Every machine is recorded at the time of acceptance. If it exceeds the accepted standard, it will be regarded as unqualified and cannot leave the factory.

Specification of Automatic Window Patching Machine

Model Model TC-1100A

Maximum paper delivery Max.PaperSize 1100×650mm

Minimum paper feed Min.PaperSize 100×100mm

Maximum patch size Max.filmSize 850×500mm

Minimum patch size Min.filmSize 40×20mm

Diaphragm thickness Film Sheet Thickness 0.03-0.3mm

Maximum machine speed Max. working speed 10000s/h

Adapt to paper jam Cardboard 250-1200g/m²

Adapt to corrugated paper Corrugated Paper ≤5mm

total power Total Power 8Kw

Overall weight Total weight 2980kg

external dimensions Overall Dimensions 4800×1800×1520mm

external dimensions

(when rubber roller is pulled out) Overall Dimensions

（Whentherollerispulledout)

4800×2650×1520mm

Serial number Category name Specification brand Origin and Remarks

1 Frequency converter 2.2KW Delta, Huichuan (optional)

2 Programmable Logic Controller (PLC) H2u-48 Delta, Huichuan (optional)

3 Man-machine interface (touch screen) B-07 Delta, Huichuan (optional)

4 Photoelectric switch (electric eye) D61 Omron

5 Relay Schneid er

6 Feed servo motor 1.5KW De lta Huich uan ( Optio nal)

7 Film feed servo motor 750W Delta Huichuan (Optional)

8 Button Schneid er

9 Contactor Schneid er

10 Key bearing SKF Sweden

11 Other bearings HER Harbin

12 Paper feeding belt Taiwan

13 Air suction belt Taiwan

14 Paper collecting belt Taiwan

15 Joint bearing SF South Korea

16 linear LM12UU HHY South Korea

17 Linear guide EGH25CA HIWIN Taiwan

18 Proximity switch AUTONICS South Korea

19 Ac contactor Schneider France

20 Thermal relay (thermal overload protector) Schneider France

21 Air switch LS South Korea

22 Button Schneider France

23 Gear motor WANSHSIN Taiwan

24 Main motor DEDONG China

25 Air circuit system SNS China
