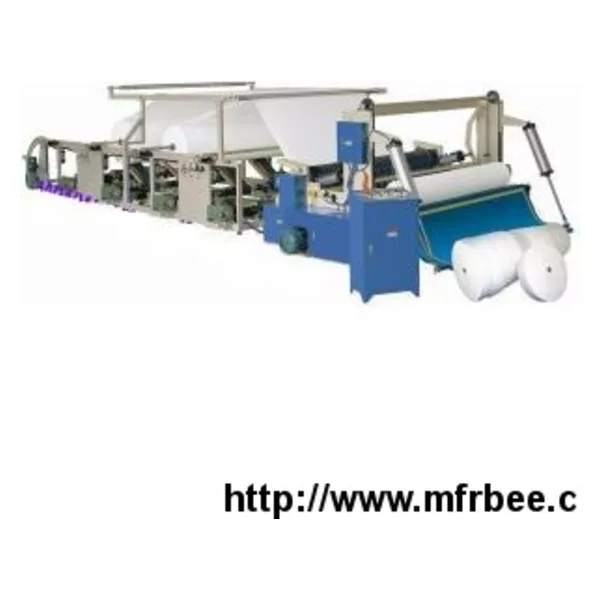

High Speed Slitting Rewinder Machine

Machine Introduction :

This machine is mainly used to rewind and slit toilet paper ,nonwoven, dustless paper. It rewind single ply into double ply or three ply or four ply of small jumbo roll with different specifications which will be used for folding tissues, napkin paper, box drawing face tissue, sanitary tissue etc. This machine has good feature, the whole machine structure is reasonable and compact, fully use pneumatic devices, running stably at fast speed, has easy operation ,is the ideal equipment for paper mill and nonwoven factory.

Main Features.

It consists of pneumatic lifting device, raw paper unwind system, main machine

body rack, calender structure, slitting system, rewinding system etc .It absorbs the advantages of the similar equipments from home and abroad, adopts domestic high grade main parts. It has good feature, fully use pneumatic devices, running stably at fast speed, has easy operation.

Whole machine adopts superior steel to design and manufacture precisely, the parts which contact the raw paper all are process with advanced metal face dealing craftswork.It adopts pneumatic lifting device ,so can save the labor to load the raw paper ,also it adopts pneumatic type raw paper unwinding device and pneumatic type holding, rewinding structure. The slitting blade are all superior ,durable ,wear well, and can be exchanged easily and adjusted slitting specification. The whole machine has the fan absorbing edge function ,the stepless speed regulating motor is easy to control and adjust. The electrical control box panel is easy and can operate easily.

Technical Data

Model	1092	1575	1760	2500	2800	3000
Raw paper width	1300mm	1750mm	2000mm	2400mm	2800mm	3000mm
Max out dia of raw paper	1200mm（other size please order）
Inner dia of raw paper core	76mm(=3″)
Machine max speed	300M/min (500-800m/min need order)
Finished roll width mm	Adjustable (Minimum :60mm need order)
Jumbo roll stands	1-3 need order
Material can be cut	Toilet paper ,Face tissue,Napkin paper etc
Calander system	Steel to steel or steel to rubber roller, Pnuematic separate , Pnuematic disc brake
Rewinding system	Pnuematic timing rewinding Pnuematic braking Air-shaft rewinding
Slitting system	Automatic slitter control
Paper Discharging system	Automatic discharging
Edge cutting system	Vacuum suction edge cutting 3-5kw
Programmable controller	Programmable Controller (PLC) Pre-set the weight and diameter
Power	Frequency conversion speed regulator 7.5-22KW
Pneumatic System	3HP Air Compressor，Mini Air Pressure5kg/cm2 Pa(provided by customer
Dimension(L×W×H)	13000X3200X2000~13000X4200X2000
Machine weight	22000-30000KG
Option
Jumbo roll core shaft	Air-shaft
Unwinding Unit	Servo drive
Calendering Unit	Steel to steel, steel to rubber
Rewinding Unit	Servo drive
	Servo drive
	Rider roller
Programmable controller	Pre-set the weight and diameter
