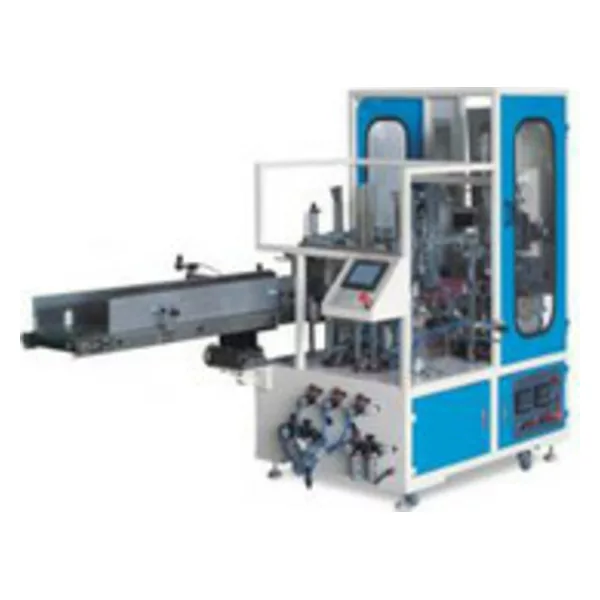

Automatic facial tissue cardboard box sealing machine
Product Quick Detail
- Place Of Origin
- China
- Packaging
- wooden case
- Delivery
- 15 Days
Specifications
DC-FT-CBSPM1 Adopt PLC and vacuum suction technology, the folded facial tissue can be feed into the box by the conveyor, and then sealing automatically. It can be connected with Log Saw to compose a facial tissue production line.
| Packing boxes size | Length | 100-250mm |
| Width | 100-150mm | |
| Height | 50-120mm | |
| Boxes | 350-400g/m2 | |
| Applicable adhesive | Hot-melting glue | |
| Glue melting device | Copper stove, temperature adjustable | |
| Control system | Paper feeding | Electro-magnetic clutch paper feeding |
| Control | PLC program control | |
| speed | Design speed | 35boxes/min |
| Production speed | 20-30 boxes/min | |
| Power needed | Main motor | AC380V 50HZ 0.75KW |
| Heating device | AC380V 50HZ 2.4KW | |
| Air pressure | 0.5Mpa(buyer prepares) |
