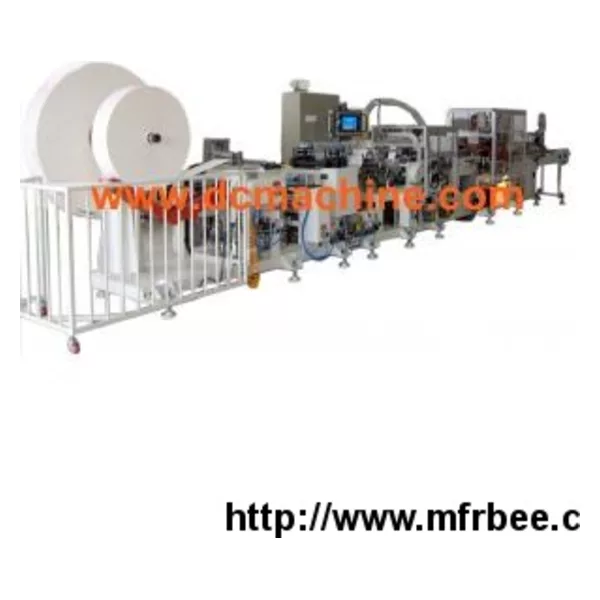

Handkerchief Production Line

A. Introduction

1. Adopting linear structure layout, continuous folding and packaging. Finished product with nice shape and smooth packaging. Machine with firm and reliable structure.

2. Constant tension control of raw paper unwinding; stepless speed regulation on tissue calender.

3. Adopting BST raw paper auto lateral deviation; suit for producing standard pack as well as mini pack.

4. Centralized controlled by programmable controller, touch screen operation, with the function of fault display and alarm, automatic shutdown protection, data statistics, etc.

5. Tissue size and piece number per bag can be custom madeaccordingly, like ptissue size: 200 mm * 200 mm, 210 x 210 mm... ; Each bagt contains 8, 10 pieces etc.

6. Other optional functions: embossing roll, virtual cutting device and automatic labeling machine. Connect with our multi-bag packaging machine, and form a complete production line.

B. Single equipment supply line: including BST rectifying, calender, embossing, folding, counting, packaging, labeling unit

C. Main Technical Parameters

Item	Technical Parameter
Design folding speed	1500 pcs/min
Stable working speed	1100 pcs/min
Raw paper jumbo roll width	205mm,208mm,210mm
Raw paper jumbo roll diameter	1500mm
Inner dia of jumbo roll core	76mm
Raw paper thickness	3 plies: 13.5-15.0gsm 2 plies: >=18gsm
Packing specification	mini type（75mm±2mm）（53mm±2mm）（22mm±2mm）
Pieces per bag	8,10
Machine dimension	1250014002100mm
Machine weight	5500KG
Main machine power	25KW
Compressed air	0.5Mpa
Air flow	200L/min
Packaging material	CPP,PE,BOPP or other double-sided heat sealing membrane
Packaging material thickness	35 - 45UM
