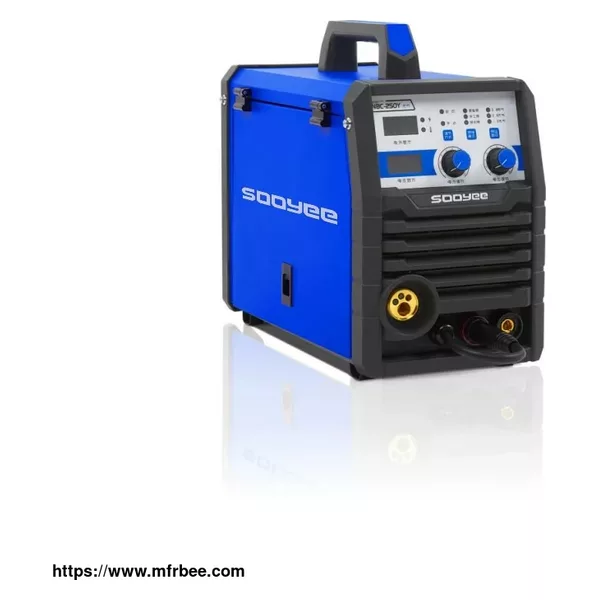

Welding machine MIG-250Y

Installation Precautions
＞Input voltage: AC2~220V±10%, 50/60Hz
＞Input cable: ≥4mm², length≤5m
＞Distribution switch: 63A
＞Output cable: 25mm², Welding torch length≤5m
＞Wire reel specifications: 1KG、5KG
＞Ambient temperature: -10℃~+40℃
＞Use environment: The air inlet can not be blocked, no direct sunlight exposure, pay attention to dust

Features of Welding machine MIG-250Y

＞Single-phase 220V integrated airless self-shielded welding machine

＞Advanced single-tube IGBT inverter technology, small welding spatter, beautiful welding seam

＞Perfect undervoltage, overvoltage, overheating and overcurrent protection, safe and reliable

＞Accurate digital display of current and voltage presets, easy and intuitive operation

＞High-voltage wire feeding to start the arc, the arc does not burst when the arc starts, and the small ball is removed when the arc is closed.

＞Small size, light weight, easy to carry

＞Humanized, beautiful appearance design, more convenient operation

＞Three-proof design of key components, suitable for various harsh environments, stable and reliable operation

＞Suitable for outdoor construction, advertising decoration, iron processing and other industries

Product parameters of Welding machine MIG-250Y

Product Type	MIG-250
Input Power Source	Single-phase 220V
Rated Input Capacity	4.6KVA
Inverting Frequency	45KHZ
No-Load Voltage	52V
Duly Cycle	60%
Voltage Range	20-250A
Carbon-point Diameter	0.8-1.0mm
Efficiency	80%
Insulation Class	Class F
Dimensions	430X215X355mm
Weight	10KG

Welding machine external connection diagram
