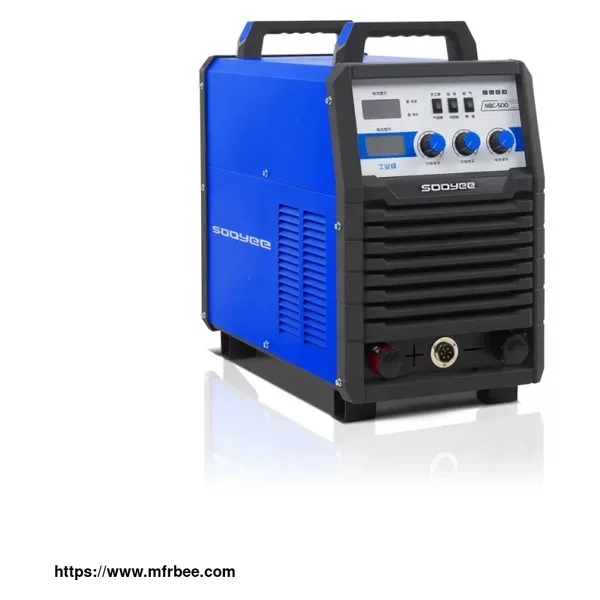

Welding machine NBC350 Workers - NBC500 Workers

Supplier: Chengdu Sooyee Intelligent Technology Co., Ltd.

Contact the supplier to confirm specifications, minimum order, sample availability and lead time.

https://www.hitsooyee.com/Welding-machine-NBC350-Workers-NBC500-Workers.html

Installation Precautions
>Input voltage: AC3~380V±10%, 50/60Hz
>Input cable: ≥6.0mm², length ≤5m
>Distribution switch: 63A
>Output cable: 50mm², length≤30m, welding torch length≤5m
>Ambient temperature: -10℃~+40℃
>Using environment: the air inlet and outlet can not be blocked, no direct sunlight exposure, pay attention to dust
>Cylinder installation: fixed firmly, avoid collision, place in a cool place, do not expose to the sun

Features of Welding machine NBC350 Workers - NBC500 Workers

>Soft-switching IGBT inverter technology, small welding spatter, beautiful welding seam

>Perfect undervoltage, overvoltage and current protection, safe and reliable

>Classic analog large board technology, good welding performance and high reliability

> High-voltage slow wire feeding to start the arc, the arc does not burst the wire, and the arc ends to remove the ball

>Constant voltage/constant current output characteristics, MIG/CO2 welding, one machine for multiple purposes

>With arc-stop working mode, greatly reducing the operation intensity

>Optional extension control cable, suitable for welding work in narrow and high places

>Humanized, beautiful appearance design, more convenient operation

>Three-proof design of key components, suitable for various harsh environments, stable and reliable operation


Product parameters of Welding machine NBC350 Workers - NBC500 Workers

Product Type

NBC-350K Works

NBC-500K Works

Input Power Source

Three-phase 380V

Three-phase 380V

Rated Input Capacity

15.5KVA

27.5KVA

Inverting Frequency

20KHZ

20KHZ

No-Load Voltage

68V

72V

Duly Cycle

80%

60%

Voltage Range

14-40V

14-50V
Electrode Diameter0.8-1.2mm
1.0-1.6mm
Electrode Diameter2.5-4.0mm2.5-5.0mm

Efficiency

80%

80%

Insulation Class

Class F

Class F

Dimensions

560X305X530mm

650X335X575mm

Weight

26KG

37.8KG

Welding machine external connection diagram
