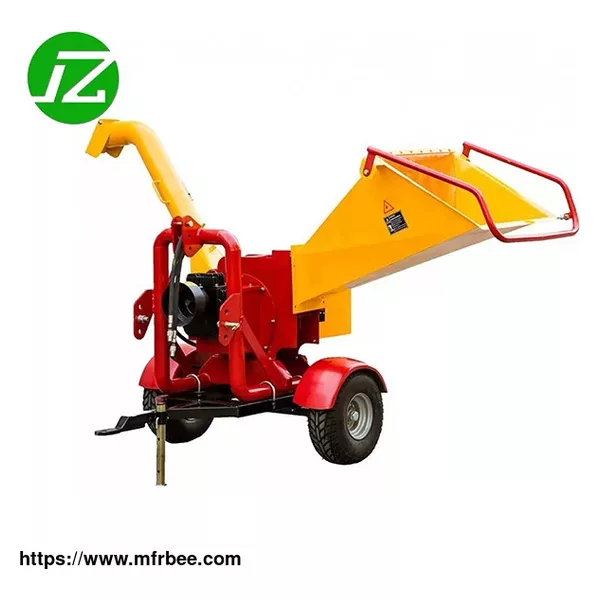

Wood Chipper Two Hydraulic System JZ-WCD

Packaging
N/A
Delivery
N/A
https://www.wfjpre.com/Wood-Chipper-Two-Hydraulic-System-JZ-WCD.html

Product Description

This wood chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory. Meanwhile, the using value can reach to the maximum and the environmental pollution can be reduced.


Main features:

* Good chipper effect:Chips very small. Chips size is between 5mm-50mm;

* Good structure:The wood chipper is composed of chasis, drum rotor, feed rollers, blades and hammer, hydraulic system, adjustable valve etc.

* High quality blade: Two-edged blades are hardened precision cut tool steel, keeping a sharp cutting edge and maximizing the performance of the chipper. They are made of special material, with over times heat treatment process to ensure longer service time.

* Mounting Configurations:There are two different mounting configurations available for the BRH Wood Chipper; A three point hitch and trailer. <5>Self-feeding Hopper:The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.

* Roller speed:adjustable according to the diameter of wood.

* Machine Foldable: for the convenience of transportation.

* Warranty:1 year free spare parts warranty, lifetime supply of spare parts


Technical parameters:

Model JZ-WCD80S JZ-WCD80
Dimension 1680*1400*1620 1680*1400*1620
PTO Speed maxi 540 T/min 540 T/min
Power required 20-35HP 20-35HP
Length 1100mm 1600mm
Working width 2500mm 2500mm
Width for transport 1500mm 1500mm
Weight 305KG 350KG
Discharge pipe height 1500mm 1800mm
Hopper height 900mm 1200mm
Wheel size 20*7-8 20*7-8
Number of blade 2 2
Sawdust thickness less than 5mm less than 5mm
Sawdust length 5-50mm 5-50mm
Feeding outlet rotation angle 360 degree 360 degree
Max. dia. of feeding 80mm 80mm
Blade disc 302mm 302mm
Efficiency 7-8 m3/h 7-8 m3/h
Oil tank capacity 35L 35L
Speed of roller 0 to 175 T/min 0 to 175 T/min
Cutter diameter 350mm 350mm
Cutter rotation speed 2700rpm 2700rpm
