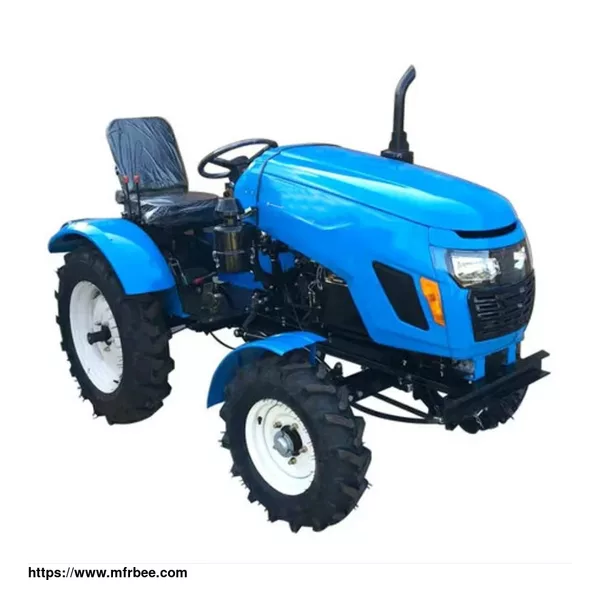

4 wheels Mini Tractor 20HP
Specifications
Each product has strict inspectionsin factory.
Products warranty period is as long as 18 months.
Product parameters:
MODEL | JZ - Mini tractor 20hp | |
Engine | Model | 1110 |
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | |
Cooling Mode | Condenser (Radiator) | |
Power | 20hp | |
Combustion System | Direct Injection | |
Cylinder Bore | 100mm | |
Piston Stroke | 100mm | |
Compression Ratio | 18:01 | |
Rated Speed | 2400rpm | |
Fuel Efficiency: | ≤240.2gl/kw.hr | |
Displacement | 0.785 | |
Fuel Tank Capacity | 8L | |
Water Tank Capacity | 2L | |
Net Weight | 121kg | |
Gross Weight | 135 | |
Overall dimensions:(L×W×H) | 2140×905×1175mm Without tiller | |
Overall dimensions:(L×W×H) | 2600×1000×1175mm With tiller | |
Front wheel size | 5.00-12 | |
Back wheel size | 7.50-16 | |
Ground clearance | 180mm | |
Working weight | 540kg | |
Transmission style | Belt transmission | |
Steering style | Steering wheel power steering system | |
Brakes | Two side wheel brake | |
Starter | Electric start/Hand crank | |
Seat | Adjustable | |
Gear style | (3+1)*2; 6 Forward, 2 Reverse | |
Speed | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | |
Reverse | 1.29, 5.22 | |
Rotary tiller | Transmission Type | Middle Gears Transmission, or side gears transmission |
Width | 1000mm Adjustable | |
Number of blades | 18-20pcs | |
Working depth | 150-250mm | |
Up and down control | Hydraulic system |
Our services：
Quality
Our products have passed ISO9001,CE and SGS related Certificate.
Each product has strict inspectionsin factory.
Products warranty period is as long as 18 months.
Services
Own rich export experiences,Lansu Comany professional foreign trade service teams can provide multi-languages services.
Welcome to visit and study in China!we can provide free training for technical workers.
We can arrange technicians to go abroad for installation,technical instruction and maintenance.
We can help clients purchase matched agriculture tools to save time and money.
OEM/ODM available(customized products according to customer requirements).
Time
We have storage for standard models which can be shipped in time.
We are close to Qingdao and Yantai Port,with low cost and can save transportation time.
Price
High quality products will help customers increase sales.
Competitive prices will help customers make more money.
