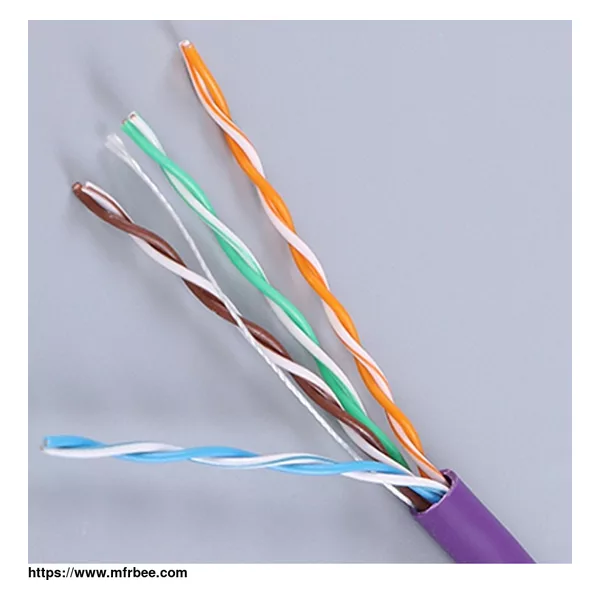

CAT5e

Place Of Origin: China
FOB Price: USD $55.00 / Piece

Minimum Order: 100

Packaging: 305meter each box

Delivery: 15 Days

Appliacation

1. Exceeds ANSI/TIA-568C. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.

2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;

3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

6. Color Availability: Additional cable colors available.

Electronic Characteristics

Impedance: 100± 15(ohms).

Rated Temperture: 75º C

DC Resistance unbalance(%): Max2.5

DC Resistance 20º C: 8.4(Ohms/100m)

Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)

Transfer Impendance: Max 10 mohms/m@100MHz.

Installation Resistance: >5000MΩ *KM

Dielectric strength: DC 2500V 2S

Standard / Certificate

Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B

Certificates ISO9001,RoHS 3.0, CPR, UL/ETL, CE, REACH

Country: China (Mainland)
Business Type: Electronic
Market:Europe
Founded Year:1996
Address:
Contact:May Xu

*Your name:	Enter name here eg:Ralph zhang
*Your Email:	Enter email here
*To:	XingFa Cable
*Subject:
*Message:
	Enter between 20 to 3,000 characters. English only. Characters : 0 / 3000
*Enter the secure code shown below	Reload Image

		We do inquire for you , please wait ...
