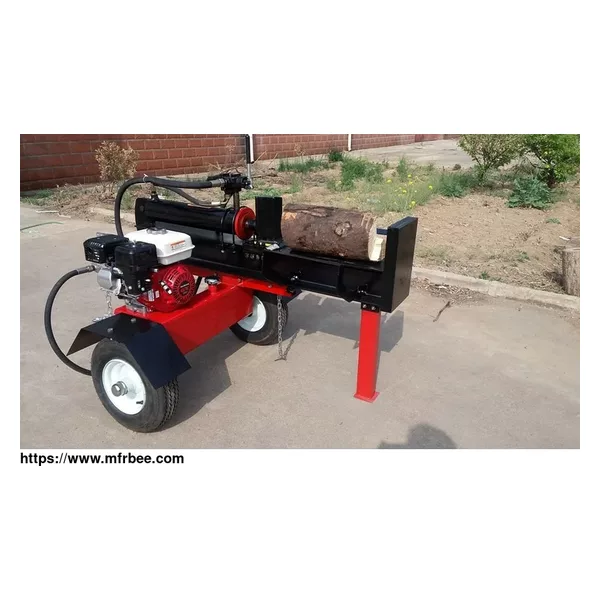

Log Splitter JZ-LS30T610
- Packaging
- N/A
- Delivery
- N/A
Specifications
Specifications:
*CE EPA approved
*Vacuum tire
*Rear light system
*200cc B&S, HONDA, LIFAN, LONCIN engine optional
*Oil and temperature gauge
Technical parameters:
| Model No. | JZ-LS30T610 |
| Manufacturer | Jinpuruien |
| Pre-Assembled | No |
| Engine brand | Ducar (B&S, HONDA, Loncin and Lifan optional) |
| Engine strter | Recoil start/Electric start |
| Displacement | 200cc |
| Horsepower | 6.5hp HONDA or B&S petrol engine |
| Working method | Horizontal and vertical |
| Max log length | 25" |
| Max log diameter | 25" |
| Wedge style | 4-way (2-way available) |
| Replaceable wedge | Yes |
| Sharpenable wedge | Yes |
| Control valve | 100L 3 position with auto-return |
| Cylinder | 5"x24" |
| Ram travel | 610mm |
| Max. force | 30 ton |
| Pump | 16 gallon, HI-LO 2 stage |
| Hydraulic filter | Yes |
| Hydraulic oil included | Yes |
| Cycle time | 12 seconds |
| Tire | 6.5-8 or 4.0-8 vacuum tire |
| Log cradles | Included |
| Jack stand | Included |
| Fenders | Included |
| Hitch ball size | 2" |
| Safety symbol | Yes |
| Tire speed | 60km/hour |
| Oil and temperature gauge | Included |
| OEM | Acceptable |
| Consumer warranty | 2 years limited |
