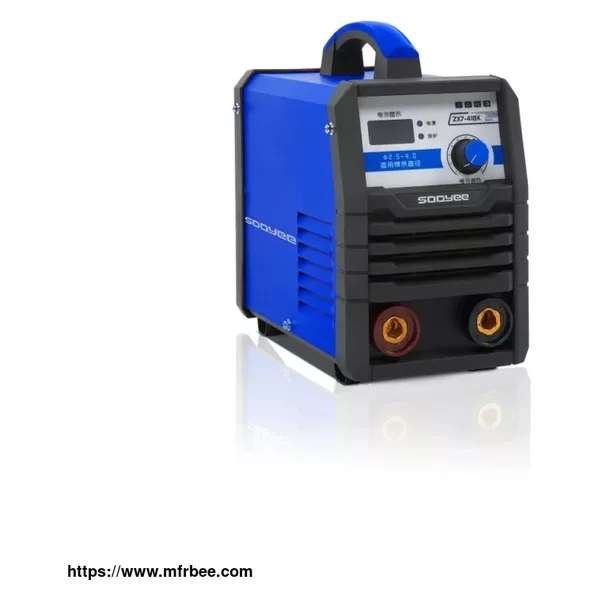

Welding machine ZX7318K-418K
Specifications
Features of Welding machine ZX7318K-418K
＞Advanced IGBT inverter technology, fast dynamic response
＞Dual IGBT modules, good device performance and parameter consistency, reliable work
＞Perfect undervoltage, overvoltage and current protection, safe and reliable
＞Accurate digital display current preset, convenient and intuitive operation
＞Acid, alkaline electrode, stainless steel electrode, cast iron electrode can be welded
＞Continuously adjustable arc starting and thrust current, effectively solve the phenomenon of sticking electrode and arc breaking
＞Humanized, beautiful appearance design, more convenient operation
＞Three-proof design of key components, suitable for various harsh environments, stable and reliable operation
Product parameters of Welding machine ZX7318K-418K
| Product Type | ZX7-318K | ZX7-418K | ||
| Input Power Source | Single-phase 220V | Two-phase 380V | Single-phase 220V | Two-phase 380V |
| Rated Input Capacity | 8.2KVA | 9.9KVA | ||
| Inverting Frequency | 28KHZ | 28KHZ | ||
| No-Load Voltage | 72V | 62V | 72V | 62V |
| Duly Cycle | 35% | 35% | ||
| Voltage Range | 30-318A | 30-418A | ||
| Electorode Diameter | ≤4.0 | ≤4.0 | ||
| Efficiency | 80% | 80% | ||
| Insulation Class | Class F | Class F | ||
| Dimensions | 300X160X280mm | 300X160X280mm | ||
| Weight | 5.0KG | 5.2KG |
Welding machine external connection diagram
