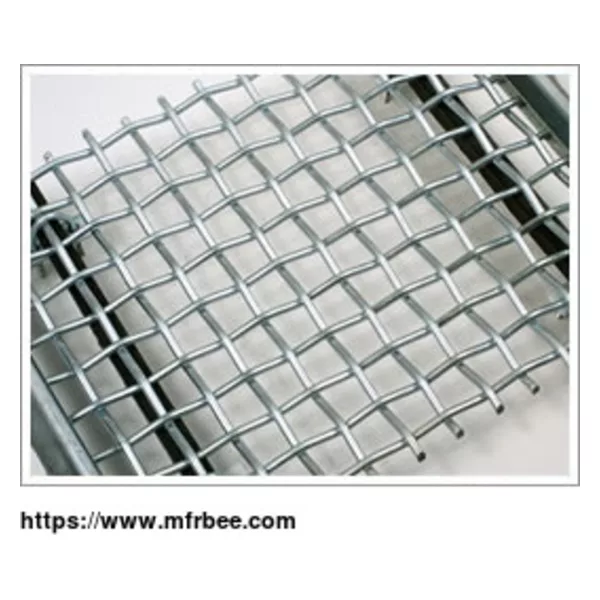

We offer woven mesh screen made with pre-crimped stainless steel wire, 304, 304L or 316. This kind of industrial screen is rigid and strong, suitable for heavy loading sifting and separating of quarries and particles.
Wire Materials: Stainless steel wire
Opening Patterns: Square opening, rectangular opening and slotted hole.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Crimped Wire Mes Screen Specifications:
Wire Gauge SWG | Wire Diameter mm | Crimped Mesh/Inch | Aperture mm | Weight kg/m2 |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
