Dutch Twill Weave Wire Mesh
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

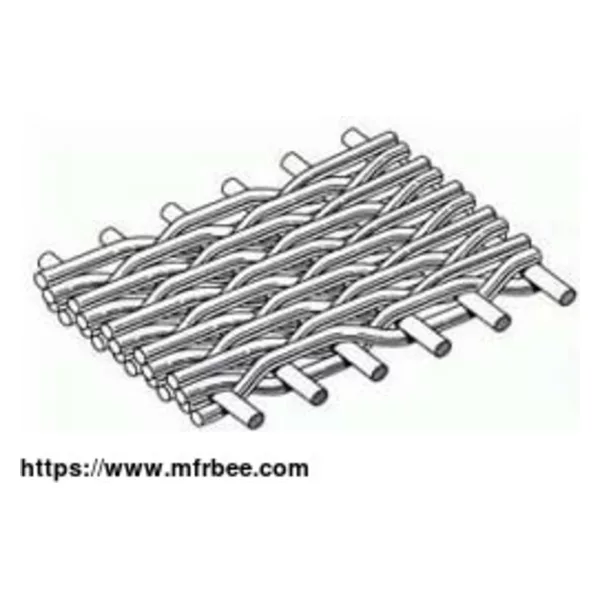

Weaving Method: This type of woven wire mesh/cloth/fabric is a kind of twilled woven
Uses: Dutch Twill also known as Crossed twilled wire mesh are basic components in the production of filter used in chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.
Forms of Supply: Supplied in full rolls or cut strips, round pieces. Processed in the forms of disc screen and filter elements.
Wire Materials:
Mainly Stainless Steel Wire: Aisi 304, 304L, 316, 316L.
Specification of Dutch Twill Woven Wire Mesh, Made of Stainless Steel:
Table 1:
| Mesh Count Warp x Weft | Wire Dia mm Warp x Weft | Wire Dia inch Warp x Weft | Micron Rating |
| 20 x 250 | 0.250 x 0.215 | 0.0100 x 0.0085 | 70-90 |
| 40 x 400 | 0.180 x 0.140 | 0.0071 x 0.0055 | 90-110 |
| 50 x 500 | 0.140 x 0.114 | 0.0055 x 0.0045 | 70-90 |
| 50 x 600 | 0.140 x 0.090 | 0.0055 x 0.0035 | 60-70 |
| 80 x 700 | 0.100 x 0.080 | 0.0040 x 0.0032 | 45-55 |
| 100 x 800 | 0.100 x 0.070 | 0.0040 x 0.0028 | 36-38 |
| 120 x 1000 | 0.080 x 0.053 | 0.0031 x 0.0021 | 27-29 |
| 165 x 800 | 0.070 x 0.053 | 0.0027 x 0.0021 | 24-26 |
| 165 x 1450 | 0.070 x 0.040 | 0.0027 x 0.0016 | 16-18 |
| 270 x 2000 | 0.350 x 0.028 | 0.0014 x 0.0011 | 9-10 |
| 325 x 2400 | 0.035 x 0.025 | 0.0014 x 0.0010 | 4-5 |
- Country: China (Mainland)
- Business Type: 制造商
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2000
- Address:No.156 Industrial Park,Dezhou,China
- Contact:Lu Feng
