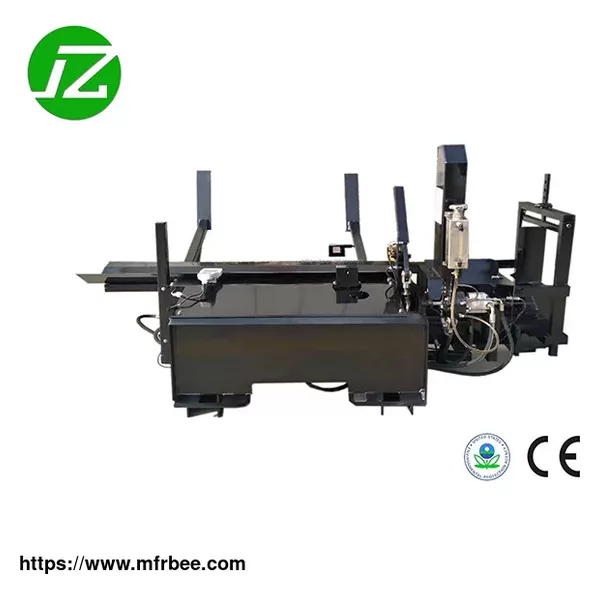

Firewood Processor JZ-FR30T450
- Packaging
- N/A
- Delivery
- N/A
Specifications
PRODUCT DESCRIPTION
Automatic firewood processor with Honda GX630 gasoline engine, electric start, equiped with a hydraulic 25" chainsaw, with max. 450mm splitting diameter and 610mm splitting length, 35 ton splitting force, towable with trailer coupler and wheels, come with accessories of below:
* 3m firewood discharge belt conveyor
* hydraulic log lifter table to load wood into machine
* 4 way splitting wedge(6-way, 8-way, 12-way wedge optional)
Technical parameters
| Model name | JZ-FR30T450 |
| Splitting force (t) | 30 |
| Length Travel: | 104" |
| Length Working: | 128" |
| Width: | 52" |
| Height: | 49' |
| Hyd Requirements: | 15 gpm @ 2850 psi |
| Hyd Case Drain Line: | Required 1 |
| Control System: | Electrical Control Kit Solenoid Operated |
| Max Log Diameter: | 18" |
| Max Log Length: | 10' |
| Min Log Length: | 6' |
| Cut Lengths: | 12" to 22" |
| Saw Bar: | 25" Length (642mm) Harvester |
| Saw Chain: | .404 pitch, 18H Harvester Series |
| Saw Motor: | Gear type w/outboard bearings |
| Saw Oiler: | Automatic w/ 2.5 gallon bar oil tank |
| Splitter Cylinder: | 3.5" bore x 24" stroke 2" rod |
| Splitter Speed 15-20 gpm: | High Power Mode 2.64 sec |
| Splitter Speed 15-20 gpm: | High Speed Mode 2.68 to 1.77 sec |
| Splitter Force High Power Mode: | 27,406 lbs |
| Splitter Force High Speed Mode: | 18,400 lbs |
| Splitting Wedge: | 2-way, 4-way, 6-way adjusted |
| In-feed: | Sliding trough carries log up to wedge |
| Mounting : | Universal Quick Attach J2513 |
| Production Average: | 3 to 5 Cords Per Hour |
| N./G.Weight | 560kgs/660kgs |
| Warranty | 2 years |
Principle of work
The equipment is well connected with the Skid Steer through the installation plate of the Skid Steer or tractor. Next, driven by the Skid steer, the round wood is shoveled to the wood conveyor by the loading shovel. Then fasten the teeth and press the wood on the wood conveyor. The saw starts to work and cut the wood. After the wood is cut off, it falls on the wood receiving plate of the main machine. The wood splitting cylinder pushes the wood onto the wood splitting knife, and the wood is split into four or six,eight pieces.
Features & Warranty
1. Certification: CE, EPA.
2. 2-year warranty.
3. Machine testing before shipping.
4. Customization accepted.
5. We own our factory and can supply the machines with competitive price.
