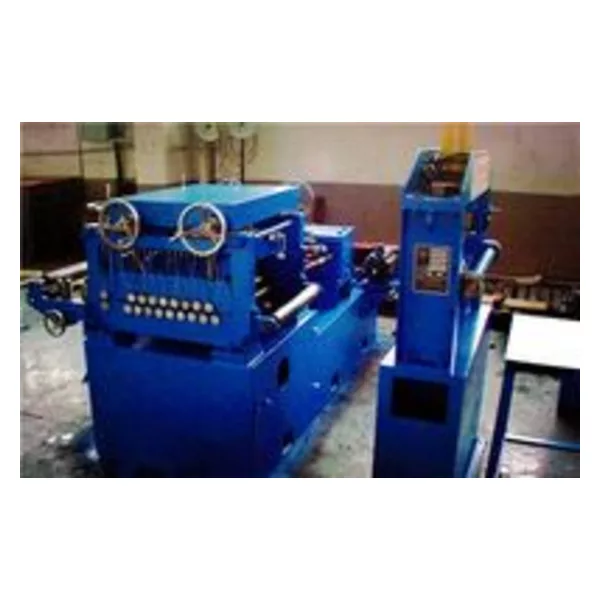

Simple thin strip steel cut to length machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Brief introduction of the thin strip steel ctl line
1.simple de-coiler
◆supporting steel rolls and uncoiling
◆Manual expand and shrink
◆With simple support
◆Adjustable belt brake, brake tension
2.leveling machine with side guide device
◆It uses the vertical roller-wheel on the both sides to direct strips into straightening device and cutting machine.
◆The stand rollers on both sides are adjusted by leadscrew. The range of the width is 100-500mm.
◆It is composed of 17 leveling rollers, 2 groups of supporting rollers, driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main
force rollers. the total quantity of the rollers is 19, the diameter is 50and the distance between the rollers is 52mm, with supporting rollers.
◆The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.
◆The working rollers can be manually adjusted which is controlled by 2 hand wheel to ensure the leveling quality.
◆Driving model: all the independent rollers and gear box are driven by 11kw frequency control motor
3. hydraulic cutter
◆shear model: cut from up to down hydraulically which is cooperate with the signal direct from current signal.
◆Adopt gap adjusting design to cut the materials and can shear 2mm steel plate safely after heat treatment.
4. unloading table
◆ Customers to produce their own
5. hydraulic system
◆Ensure the using of every hydraulic part.
◆ The working pressure of the hydraulic system is 6.3-16Mpa
6. Electrical control case
◆It controls the speed of the whole line. The main operation table can make the whole line change from high to low speed hydraulic stop start etc. Function
