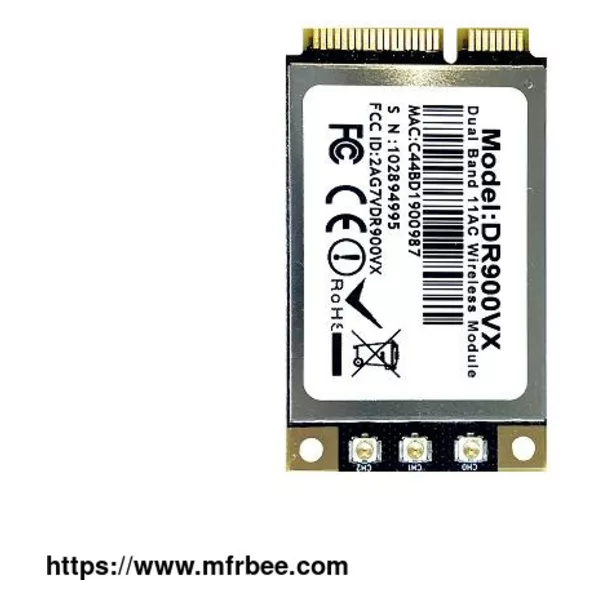

DR900VX 2.4G/5G dual bands Wlan card miniPCIe QCA9880
Product Quick Detail
- FOB Price
- USD $45.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 50 pcs per box
- Delivery
- 15 Days
Specifications
Qualcomm-Atheros QCA9880
2.4GHz max 26dBm & 5GHz max 25dBm output power
IEEE 802.11ac
3x3 MIMO Technology, up to 1.3Gbps
Mini PCI Express edge connector
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio
Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
FCC,CE and IC Certification
https://www.wallystech.com/Network_Card/DR900VX-Qualcomm-Atheros-QCA9880-3T3R-MIMO-802.11ac-Mini-PCIe-Wi-Fi-Module-Dual-Band-2-4GHz-5GHz.html
Email: william@wallystech.com
https://www.youtube.com/channel/UClmu7LBz_OWxe2VckkQr3tw
| Symbol | Parameter |
| Chipset | QCA9880 |
| Host Interface | Mini PCI Express 1.1 Standard |
| Antenna Connector | 3 x UF.L |
| Frequency Range |
2.4GHz: 2.412GHz to 2.472GHz 5GHz: 4.920GHz to 5.825GHz |
| Operating Voltage | 3.3V DC |
| Power Consumption | 5W(Max） |
| Modulation Techniques | OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM |
| Environmental Temperature | Operating: -40°C to 70°C, Storage: -40°C to 90°C |
| Environmental Humidity, non-condensing | Operating: 5% to 95%, Storage: Max. 90% |
| ROHS Compliance | YES |
| Dimensions (W×H×D) | 30.0mm × 50.9mm × 3.2mm |
