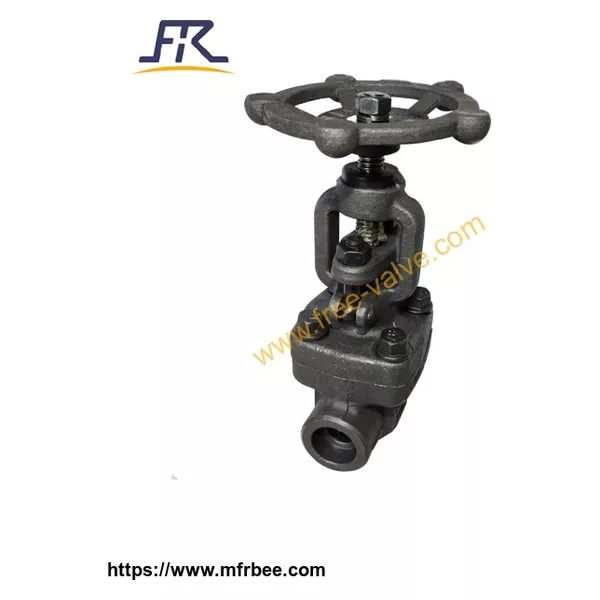

Forged Steel Al05 Globe Valve with SW Ends
Product Quick Detail
- Minimum Order
- 1
- Packaging
- Wooden Box
- Delivery
- 15 Days
Specifications
FREE-VALVE’sforged steel A105 globe valve with SW ends is compact, sturdy and ideal for high pressure and high temperature applications andconsist of a disc and stem connection designed for regulated flow or on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising hand wheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Features
1. Efficient packing seal at backseat to ensure no leakage from stem.
2. Outside Screw & Yoke construction facilitate stuffing box maintenance.
3. Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.
4. Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.
Technical Specification
| Socket weld end/Screwed end | ANSI B16.11/ANSI B1.20.1 |
| Design standard | API 602, ASME B16.34 |
| PressureRange | 800LB |
| SizeRange | 1/4" to 3" |
| Material | Forged Carbon, Stainless or Alloy Steel Materials |
| Connection type | Socket weld end/Screwed en |
| WorkingTemperature | ≤550°C |
| Operating Type | Hand wheel |
| Sealing surface material | Alloy |
| Pressure test | API598 |
| Face to Face | ASME B16.10 |
Application
FREE-VALVE’sforged steel A105 globe valve with SW ends offers high performance, reliability and safety. The Globe Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries
