Features:
1. Excellent double side sealing functions,completely seals,zero leakage in test, itcan be use for cutting off medium or regulating flow rate .
2. The simple structure, the weight is light, 90' revolves,Quickly Open andclose,Fixable operation.
3. Centric disc, one piece shaft,Easy to disassemble and repair,can be installed in any position.
4. The choice of disc and seat materials to suitworking conditions and medium.
Technical Specification:
1) SizeRange:NPS2~NPS8,
2) PressureRange:PN6~PN16,Class150
3) Body material:Carbon Steel/Stainless Steel/Ductileiron,Copper Alloy
4) Sealing material:EPDM
5)Body type:Wafer
6) Working temperature:≤80°C
7) Operating method:Lever Operated
8) Pressure test:GB/T13927; API598
9) Face to Face: GB/T12221; API609
Application:

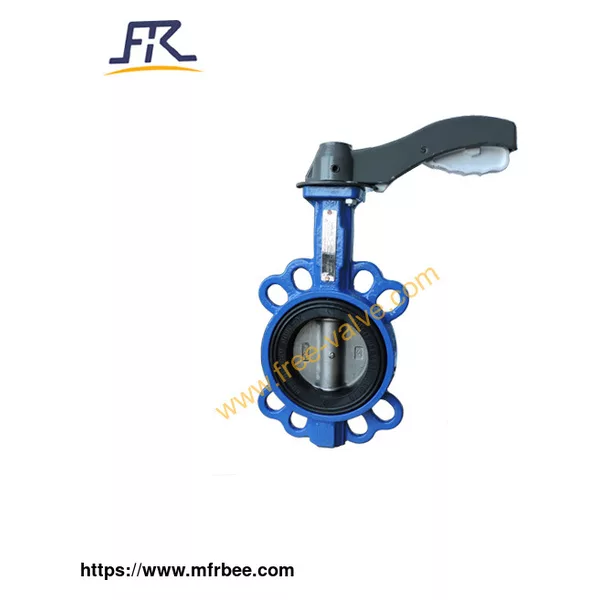

FREE-VALVE’slever operated waferresilientbutterfly valve could easily
achieveBi-Directionalsealing,therefore is a widely applied valve in oilfield,
agriculture,powerplantcondensates waterworks,water
treatment,seawater,exhaust,fluegas.Because of rubber lined body
materials,it is usually used in low pressure lines.
