High and Low Temperature Humidity Chamber
Product Quick Detail
- Place Of Origin
- Shanghai
- Minimum Order
- 1
- Packaging
- Wooden cases
- Delivery
- 15 Days
Specifications
High and Low Temperature Humidity Chamber is according toIEC60068-2-1
Specifications:
•The chamber is made of SUS304 Steel. The thermal insulation layer is made of polyurethane hard foam ultra-fine glass fiber. The heat-insulated doorframe uses high temperature aging silicone rubber sealing strip.
•The temperature controller includes Korean TEMI display in English/Chinese and German Siemens PLC. It can communicate with PC via RS-232. The temperature accuracy is 0.1℃ and humidity accuracy is 0.1%R.H
•The temperature sensor is platinum PT100Ω/MV
•The independant heating system uses nickel-chrome electric heater
•The refrigerating system is fully enclosed air-cooled single-stage compression refrigeration mode, and the compressor is from France TECUMSEH brand which can allow you get after sales support from many other countries
•The circulation system uses temperature resistant and low noise air-conditioned motor and multi-blade centrifugal wind wheel
•The safety protection system includes electric leakage, short circuit, over temperature, motor overheating, compressor pressure, overload, over-current protection
•Working Voltage: AC380V±10% 3phases and frequency 50Hz/60Hz
•Working Environmental: Temperature is 5℃～+30℃ Humidity ≤85%R.H
| High & Low Temperature and Humidity Chamber with Programmable Function (GDJS Series) | |||||
| Model (cm) | GDJS-225* | GDJS-500* | GDJS-010* | GDJS-013* | GDJS-015* |
| Workroom Dimensions | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
| Exterior Dimensions | 105*102*200 | 132*132*217 | 167*152*231 | 217*152*231 | 245*160*231 |
| Work Power | 7.0kW | 13.5kW | 15.0kW | 16.5kW | 16.5kW |
| Temperature Range | A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃ | ||||
| Humidity Range | 30%~98% R.H | ||||
| Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
| Humidity Deviation | -2%~-3% R.H | ||||
| Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
| Temperature Down Speed | 0.7℃~1.0℃/min |
| High and Low Temperature Chamber with Programmable Function (GDJW Series) | |||||
| Working Room Size | GDJW-225* | GDJW-500* | GDJW-010* | GDJW-013* | GDJW-015* |
| Workroom Dimensions (cm) | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
| Temperature Range | A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃ | ||||
| Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
| Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
| Temperature Down Speed | 0.7℃~1.0℃/min |
| High Temperature Chamber (GW Series) | |||||
| Working Room Size | GW-225 | GW-500 | GW-010 | GW-013 | GW-015 |
| Workroom Dimensions (cm) | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
| Temperature Range | Enviromental Temperature ~150℃ (Option can be max 300℃) | ||||
| Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
| Temperature Rise Speed | 1.0℃~3.0℃/min |
The * in GDJS-225*/GDJW-225* means the temperature range A: -20℃-150℃, B: -40℃-150℃, C: -60℃-150℃，D: -70℃-150℃

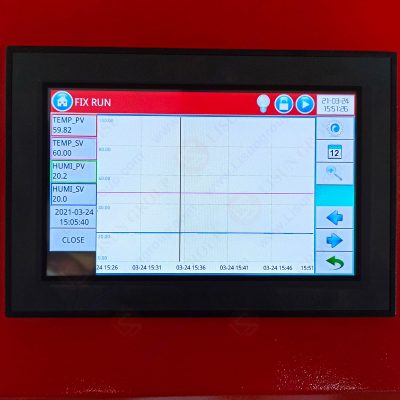

High and Low Temperature Humidity Chamber Test Curve[/caption] [caption id="attachment_6141" align="aligncenter" width="400"]

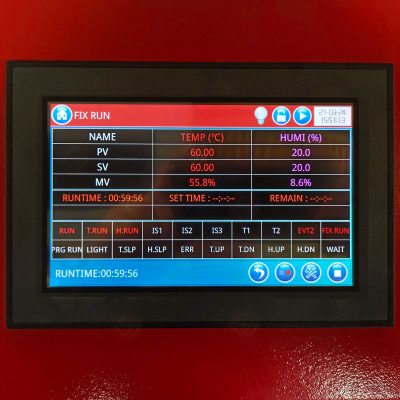

High and Low Temperature Humidity Chamber Programmable Setting[/caption] - Country: China (Mainland)
