ZP26CW 16-head Servo Double-chuck Vial-making Machine

FOB Price
USD $8,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Woodcase
Delivery
30 Days

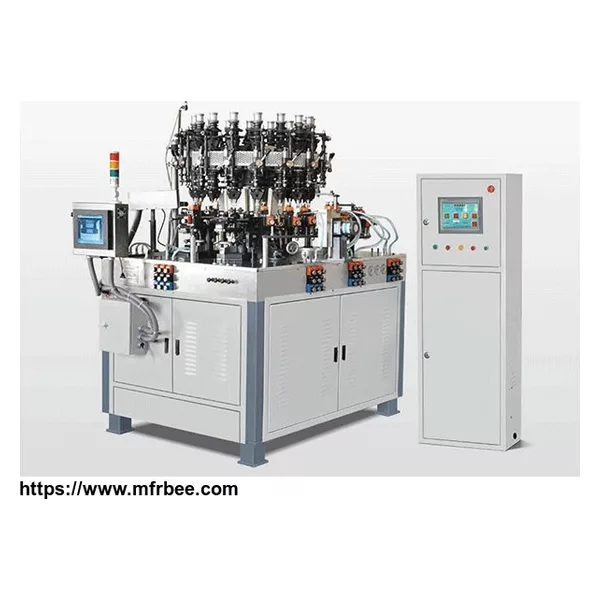

ZP26CW 16-head Servo Double-chuck Vial-making Machine

ZP26CW fully adopts PLC and servo motor control system. It's very steady, and can be controlled easily, and the precision of products is high. It's suitable for producing dia.16mm-32mm high-end glass vials. Its main controlling parts can be adjusted by modifying the parameters on the touch screen. Mainly including: revolution speed, slot speed, rotation speed, moving distance of every station, grinding tool speed, moving distance of grinding tool etc.Part-A has 3 sets of forming tools and Part-B has 10 working stations.

Technical Parameter

Item Unit Parameter
Number of Station Station 16 stations in Part-A
10 stations In Part-B
Efficiency PCS/hour 1350-1500
Size of Vial Outer Diameter mm Ф16-32
Height 25-80
Inner Diameter of Neck Ф6-20
Motor Type
YR100L-6
Power KW 1.5
Voltage V 380
Rotation r/min Adjustable
Machine Size mm 1700 x 1500x1800
Assemtile Size mm 1030x830
Weight KG 1800
Air Pressure (only for referance) Gas Mpa 0.012
Natural Gas 0.012
Liquid Gas 0.05
Oxygen 0.014
Air 0.02
Consumption(only for referance) Gas m³/hour 2.5-3
Natural Gas m³/hour 1-1.2
Liquid Gas KG/hour 07-0.9
Oxygen m³/hour 5
Air m³/hour 6-9
