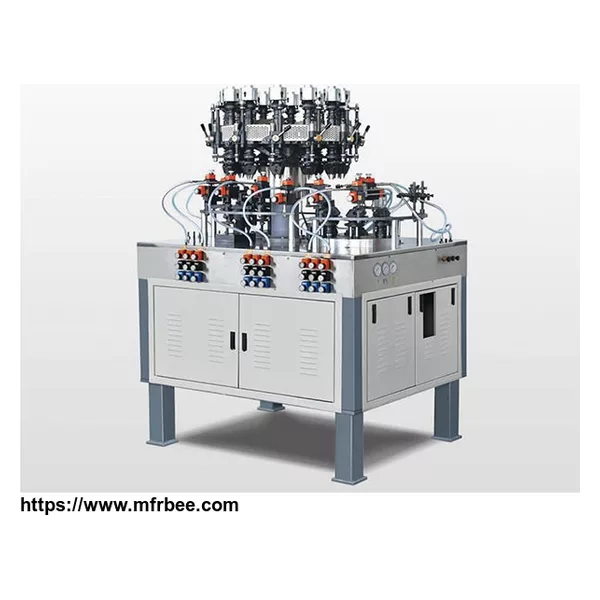

ZP30-32 12-head Double-chuck Vial-making Machine
ZP30-32 is suitable for producing glass vials with dia.16mm-32mm. Part A adopts double-chuck design. This design decreases the shakiness and increases the stability of glass tubes, and improves the quality of glass vials.
ZP30-32 12-head Double-chuck Vial-making Machine Technical Parameter
Item | Unit | Parameter | |
Number of Station | Station |
12 stations in Part-A 6 stations in Part-B |
|
Efficiency | PCS/hour | >1200 | |
Size of Vial | Outer Diameter | mm | Ф 16-32 |
Height | 25-80 | ||
Inner Diameter of Neck | Ф 6-20 | ||
Motor | Type |
|
GD200A1R5G-4 |
Power | KW | 0.75 | |
Voltage | V | 380 | |
Rotation | r/min | Adjustable | |
Machine Size | mm | 1600x1400x1600 | |
Assemble Size | mm | 950 x 800 | |
Weight | KG | 1100 | |
Air Pressure (only for referance) | Gas | Mpa | 0.012 |
Natural Gas | 0.012 | ||
Liquid Gas | 0.05 | ||
Oxygen | 0.014 | ||
Air | 0.02 | ||
Consumption (only for reference) | Gas | m³/hour | 2.5-3 |
Natural Gas | m³/hour | 1-1.2 | |
Liquid Gas | KG/hour | 0.7-0.9 | |
Oxygen | m³/hour | 5 | |
Air | m³/hour | 6-9 |
